Part number 5M1633H-STD

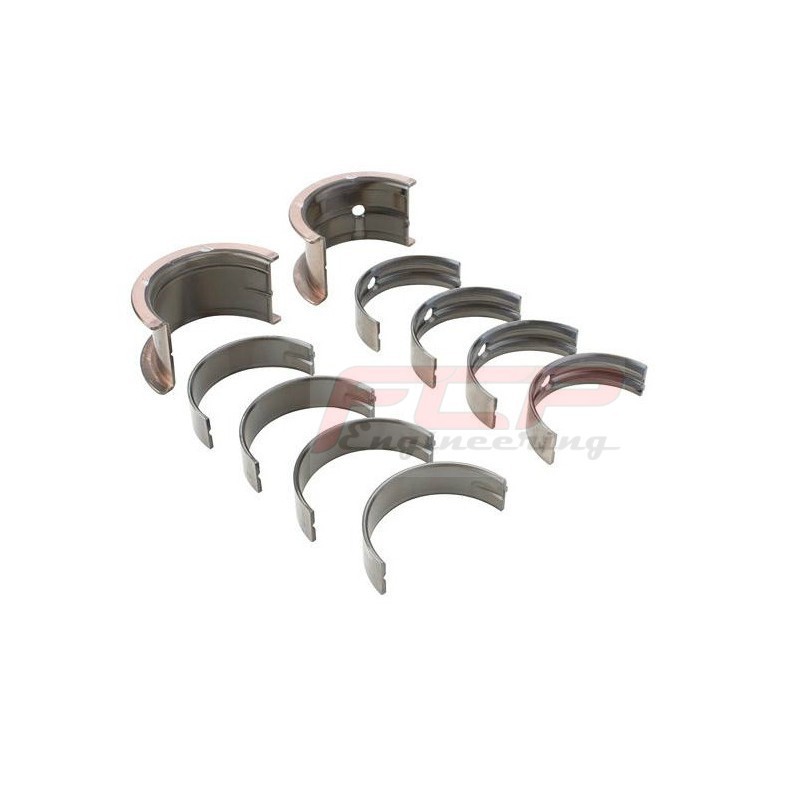

ACL Race series main bearings
Nissan - 1.6 1.7 1.8 2.0 (CA16, CA16DE, CA18, CA18DE, CA18ET, CA18DET, CA20E, CA20S, CD17)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1633H |
5M1633HX |
|
| Sizes | STD, .025, .25, .50 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.0847in / 52.951mm |
|
| Max Std Shaft Size |
2.0852in / 52.964mm |
|
| Min Std Tunnel Size |
2.2305in / 56.654mm |
|
| Max Std Tunnel Size |
2.231in / 56.667mm |
|
| Max Wall at Crown |
0.0720in / 1.830mm (1633H) |
0.0715in / 1.818mm (1633HX) 0.0717in / 1.823mm (1635HX - Flange) |
| Max Overall Length |
0.787in / 20.00mm (1633H/HX) 1.100in / 27.95mm (1635H/HX - Flange) |
|
| Notes | ||
|
Diagram |
1633H & HX - Positions 1, 2, 4, 5
1635H & HX - Position 3
|
|
