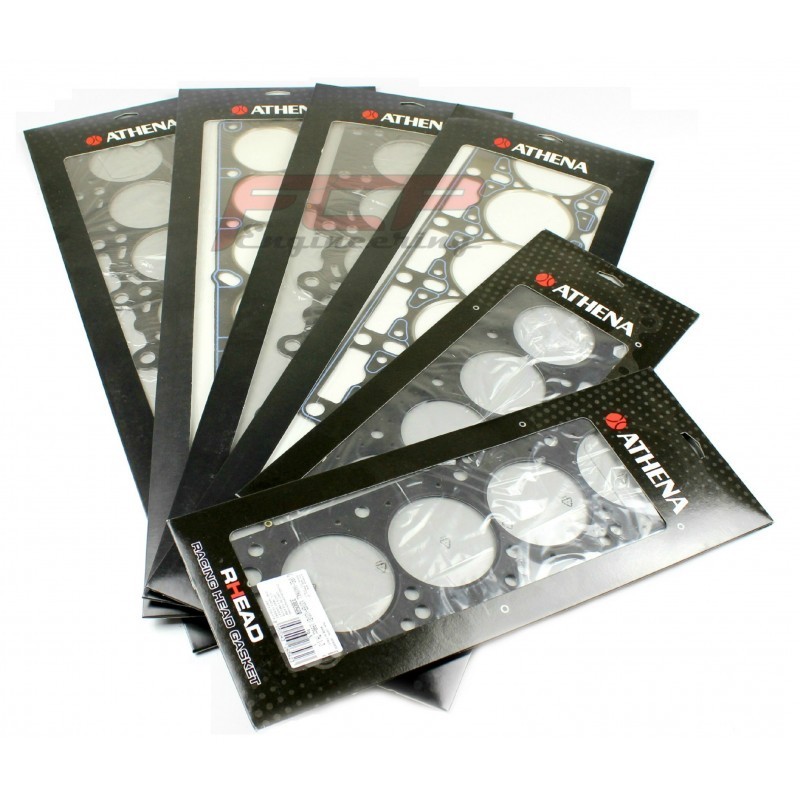

Lancia Delta Integrale 2.0 16V Athena Cooper Ring cylinder head gasket 85.5x1.8mm 330039R

Part number 330039R
Athena Racing Cooper Ring cylinder head gasket 85.50x1.80mm
Lancia Delta Integrale, Fiat Coupe - 2.0 16V (835 A8.000, 831 B5.000, 831 C5.000, 831 C5.046, 835 A7.000)
210,00 €
Доступность:2 шт.
Информация
Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine  performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).

Part number 330039R
Gasket thickness: 1.80mm
Bore size: 85.50mm

Part number starting with 330

Athena advantages

Reinforced material

Asbestos free composite raw material OE approved

Stainless steel ring (AISI304)

Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required

Silicon beading

Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages



Вам также может понравиться

Lancia Delta Integrale 2.0 8V Turbo Wossner pistons kit 84.40mm CR 8 K9010D040

Product detailed specification

Bore size

84.40mm

Stroke

90.00mm

Wossner compression ratio (CR)

8.00:1

OEM compression ratio (CR)

8.00:1

Dome volume (CC)

-17.50cm3

Compression height (CH)

39.65mm

Pin diameter

22mm

Fits for

Lancia Delta Integrale 8v Turbo (835)

749,00 €
Lancia Delta, Fiat Coupe 2.0 16V Turbo FCP H-beam steel connecting rods 145mm
Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHL1455422
Profile: H-beam
C to C: 145mm
Big end diameter: 53.91mm
Pin diameter: 22mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
Lancia Delta - 2.0 8V, 2.0 16V Turbo (835, 836)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)
399,00 €
Lancia Integrale, Fiat Coupe 2.0 8V-16V King Racing connecting rod bearings...
XP XP
1429.jpg 1429.jpg
C4601-PR C4601-PR
Quantity   4
Crankshaft   50.808 / 50.787
Housing   53.896 / 53.914
Max Wall   1.537
Max Length   19.601
Engines:
Lancia Delta Integrale - 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)
93,00 €
Lancia Integrale, Fiat Coupe 2.0 8V-16V King Racing connecting rod bearings...
XP XP
1429.jpg 1429.jpg
C4601-PR C4601-PR
Quantity   4
Crankshaft   50.808 / 50.787
Housing   53.896 / 53.914
Max Wall   1.537
Max Length   19.601
Engines:
Lancia Delta Integrale - 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)
93,00 €
Lancia Delta Integrale 2.0 8V-16V King Racing main bearings MB5730XP-0.25
XP XP
1219.jpg 1219.jpg
M5730/1PR M5730/1PR
XP XP
1316.jpg 1316.jpg
M5730/3PR M5730/3PR
Quantity   4 1
Crankshaft   53.000 / 52.989 53.000 / 52.989
Housing   56.718 / 56.736 56.718 / 56.736
Max Wall   1.842 1.842
Max Length   20.701 24.201
Engines
Lancia Delta Integrale - 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)

165,00 €
Lancia Delta Integrale 2.0 8V-16V King Racing main bearings MB5730XP-STDX
XP XP
1219.jpg 1219.jpg
M5730/1PR M5730/1PR
XP XP
1316.jpg 1316.jpg
M5730/3PR M5730/3PR
Quantity   4 1
Crankshaft   53.000 / 52.989 53.000 / 52.989
Housing   56.718 / 56.736 56.718 / 56.736
Max Wall   1.842 1.842
Max Length   20.701 24.201
Engines:
Lancia Delta Integrale - 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)

165,00 €
Lancia Delta 2.0 16V Turbo Athena MLS cylinder head gasket 87x1.6mm 338397R

Athena Racing 338-series multilayer steel (MLS) cylinder head gasket.
Athena MLS gaskets are designed to suit the requirements of today’s competition engines offering enhanced sealing compared to the OEM product. The gaskets are assembled from 2-5 layers of high quality stainless and spring steels.
Part number: 338397R
Gasket thickness: 1.60mm
Bore size: 87.00mm


Part number starting with 338

Athena advantages

Optimized radius embossing shape

The round shape of the embossing increases sealing on cylinder bore, oil and cooling water passages and improves spring back strength

Advanced stopper technology

State of the technology enhances sealing pressure around the cylinder. Highest sealing properties in high power engines

Coating technology

Designed & engineered by Athena the special coating applied on steel surfaces, improves temperature resistance & reliability of the head gasket

190,00 €
Lancia Delta Integrale 2.0 8V-16V King Racing main bearings MB5730XP-STD
XP XP
1219.jpg 1219.jpg
M5730/1PR M5730/1PR
XP XP
1316.jpg 1316.jpg
M5730/3PR M5730/3PR
Quantity   4 1
Crankshaft   53.000 / 52.989 53.000 / 52.989
Housing   56.718 / 56.736 56.718 / 56.736
Max Wall   1.842 1.842
Max Length   20.701 24.201
Engines
Lancia Delta Integrale - 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)

165,00 €
Fiat / Lancia Integrale 2.0 16V Wiseco Pistons CR 8.5 84.5mm KE219M845

Product detailed specification

Bore size

84.50mm

Stroke

90.00mm

Wiseco compression ratio (CR)

8.5:1

OEM compression ratio (CR)

8.0:1

Dome volume (CC)

-10cm3

Compression height (CH)

38.94mm

Pin diameter

22mm

Features

Accepts Turbo and Nitrous; Full Round Skirt

Fits for

Lancia Delta HF Integrale / Fiat Coupe turbo 16V
2.0 16V (HF Integrale 16V)

Wiseco ArmorGlide skirt coating is a dry film lubricant applied to the piston skirt. This coating helps reduce friction, improving performance, and will also help quiet the piston in the cylinder bore. This coating is permanently applied, and is not a break in coating, it is on the piston for the life of the part.
699,00 €
Lancia Integrale, Fiat Coupe 2.0 8V-16V King Racing connecting rod bearings...
XP XP
1429.jpg 1429.jpg
C4601-PR C4601-PR
Quantity   4
Crankshaft   50.808 / 50.787
Housing   53.896 / 53.914
Max Wall   1.537
Max Length   19.601
Engines:
Lancia 2.0 8V-16V (HF)
Fiat Coupe - 2.0 16V Turbo (175 A1.000)
93,00 €
Lancia Delta Integrale 2.0 HF ACL Race connecting rod bearings 4B2904H
ENGINE BEARINGS

CON ROD BEARING SET

MAIN BEARING SET

Part# Part#
4B2904H

4B2904HX


5M2908H


5M2908HX


Sizes STD, .025, .25 STD STD, .025, .25 STD
Oil Clearance Standard + 0.001" Extra Standard + 0.001" Extra
Half Type Identical Halves Upper & Lower
Material

Tri-metal Hardened steel backs

Tri-Metal
Min Std Shaft Size

1.9995in / 50.787 mm

2.0862 in / 52.991 mm

Max Std Shaft Size

2.0003in / 50.807 mm

2.0866 in / 53.000 mm

Min Std Tunnel Size

2.1219 in / 53.897 mm

2.2330 in / 56.717 mm

Max Std Tunnel Size

2.1226 in / 53.913 mm

2.2337 in / 56.735 mm

Max Wall at Crown

0.0605in / 1.536 mm

0.0600in / 1.523 mm

0.0726 in / 1.843 mm

0.0720 in / 1.830 mm

Max Overall Length

0.768 in / 19.50 mm

0.817 in / 20.75 mm (2908H/HX)

0.955 in / 24.25 mm (2909H/HX)

Notes - -

Diagram
(Top View)


2908H & HX - Positions 1,2,4,5


2909H & HX - Position 3


 THRUSTWASHER SET
Part# Material
Sizes Notes -
89,00 €
Lancia Delta Integrale 2.0 HF ACL Race Series main bearings 5M2908H
ENGINE BEARINGS

CON ROD BEARING SET

MAIN BEARING SET

Part# Part#
4B2904H

4B2904HX


5M2908H


5M2908HX


Sizes STD, .025, .25 STD STD, .025, .25 STD
Oil Clearance Standard + 0.001" Extra Standard + 0.001" Extra
Half Type Identical Halves Upper & Lower
Material

Tri-metal Hardened steel backs

Tri-Metal
Min Std Shaft Size

1.9995in / 50.787 mm

2.0862 in / 52.991 mm

Max Std Shaft Size

2.0003in / 50.807 mm

2.0866 in / 53.000 mm

Min Std Tunnel Size

2.1219 in / 53.897 mm

2.2330 in / 56.717 mm

Max Std Tunnel Size

2.1226 in / 53.913 mm

2.2337 in / 56.735 mm

Max Wall at Crown

0.0605in / 1.536 mm

0.0600in / 1.523 mm

0.0726 in / 1.843 mm

0.0720 in / 1.830 mm

Max Overall Length

0.768 in / 19.50 mm

0.817 in / 20.75 mm (2908H/HX)

0.955 in / 24.25 mm (2909H/HX)

Notes - -

Diagram
(Top View)


2908H & HX - Positions 1,2,4,5


2909H & HX - Position 3


 THRUSTWASHER SET
Part# Material
Sizes Notes -
139,00 €
