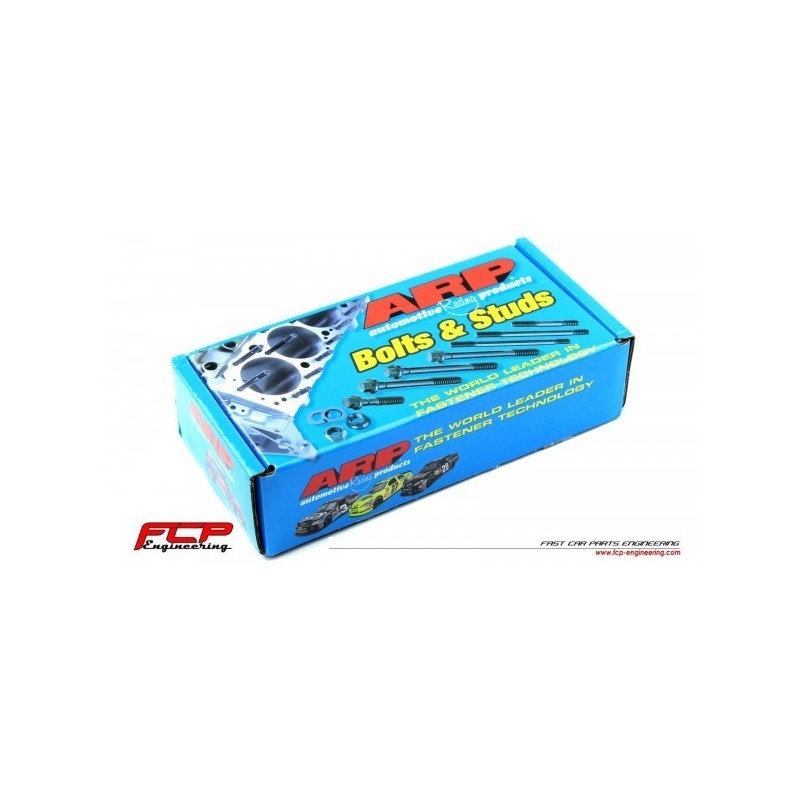

BMW 3.0 S55B30 ARP cylinder head stud kit

BMW 3.0 N54B30 / N55B30 / S55B30 Supertech conical spring kit SPRK-FE20N54-BE

Spring data:
Seat pressure - 75lbs @ 36.50mm
Open (lift) pressure - 155lbs @ 10.00mm
Spring coil bind - 23.20mm
Max lift - 12mm
Rate - 8 lbs./mm
Wide end spring outer diameter - 24.40mm
Wide end spring inner diameter - 17.60mm
Narrow end spring outer diameter - 21.00mm
Narrow end spring inner diameter - 14.30mm

Set includes:
Single springs - 24 pcs. SPR-FE20N54-BE
Titanium retainers - 12 pcs. RET-BMN54-TI (5mm)
Titanium retainers - 12 pcs. RET-BMN54-TE (6mm)

1 149,00 €

BMW 135i 335i N55 S55 FCP H-beam steel connecting rods 144.3mm for...

Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHB144353622
Profile: H-beam
C to C: 144.3mm
Big end diameter: 53.6mm
Pin diameter: 22mm
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW 135i E82/E88, M135i F20, M235i F22/F23, 335i E90/E91/E92/E93, 335i F30/F31, 435i F32/F33/F36, 535i F10/F11, 640i F12/F13, 740i F01, X1 E84, X3 F25, X4 F26, X5 E70, X5 F15, X6 E71, X6 F16, 335 GT F34, 535 GT F07
Fits aftermarket pistons

639,00 €

BMW 335i 535i N55B30 JE Pistons forged pistons 84mm CR 9.5 338096

Product detailed specification
Bore size	84.00mm
Stroke	89.60mm
JE Pistons compression ratio (CR)	9.5:1
OEM compression ratio (CR)	10.2:1
Dome volume (CC)	-14.7cm³
Compression height (CH)	32.40mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; FSR Coated skirt
Fits for	BMW - 3.0 24V Turbo (N55B30)

1 599,00 €

BMW 3.0 N55 S55 Supertech black nitrided intake valve BMIVN-1055S STD

Product detailed specification
Model number	BMIVN-1055S
Head diameter	32.00mm
Stem diameter	4.97mm
Length	104.9mm
Material	Black nitrided stainless steel
Fits for	BMW E60, E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 - 3.0 (N55B30, S55B30)

33,00 €

BMW 3.0 N55 S55 Supertech sodium filled exhaust valve BMEVI-1055S-HS STD

Product detailed specification
Model number	BMEVI-1055S-HS
Head diameter	28.00mm
Stem diameter	5.96mm
Length	112.9mm
Material	Sodium filled
Fits for	BMW E90, E91, E92, E93, E82, E88, E89, X6, Z4, F01 - 3.0 (N55B30, S55B30)

63,00 €

BMW 3er / M3 / M4 N55B30 S55B30 Ferrea intake valve STD

Ferrea Competition Plus Valves have built a reputation as the industry's most reliable extreme duty valve. To manufacture the valves we use special aerospace quality alloys, including the EV8-Z18, which provides high tensile strength. An exclusive two-step slow forging process ensures proper grain flow and virtually eliminates any damage to thematerial structure. The valves are then heat-treated and stress-relieved over a 48-hour period, which is the crucial base of our molecular integrity. These valves feature avionics-quality hard chrome along with a specially applied hard tip.

40,99 €

BMW 3er / M3 / M4 N55B30 S55B30 Ferrea exhaust valve STD

The Super Alloy Engine valves represent the highest level of sophistication in valve technology. These valves are designed to handle the extreme heat requirements and punishment of today’s Nitro Fuels, Supercharged, Turbocharged, Nitrous Oxide, and Marine race motors.

57,00 €

Cometic BMW M3 / M4 3.0 S55B30 MLX cylinder head gasket 85x1.1mm C14133-044

COMETIC MLX (Multi-Layer Stopper) gaskets utilize an integrated stopper layer for combustion chamber sealing and improved clamp load around the cylinder without increasing bore distortion. MLX technology can be found in some head gaskets and are made from the same materials as our MLS Head Gaskets. No sealants or re-torque required.

299,00 €

BMW 3.0 S55B30 ARP cylinder head stud kit
