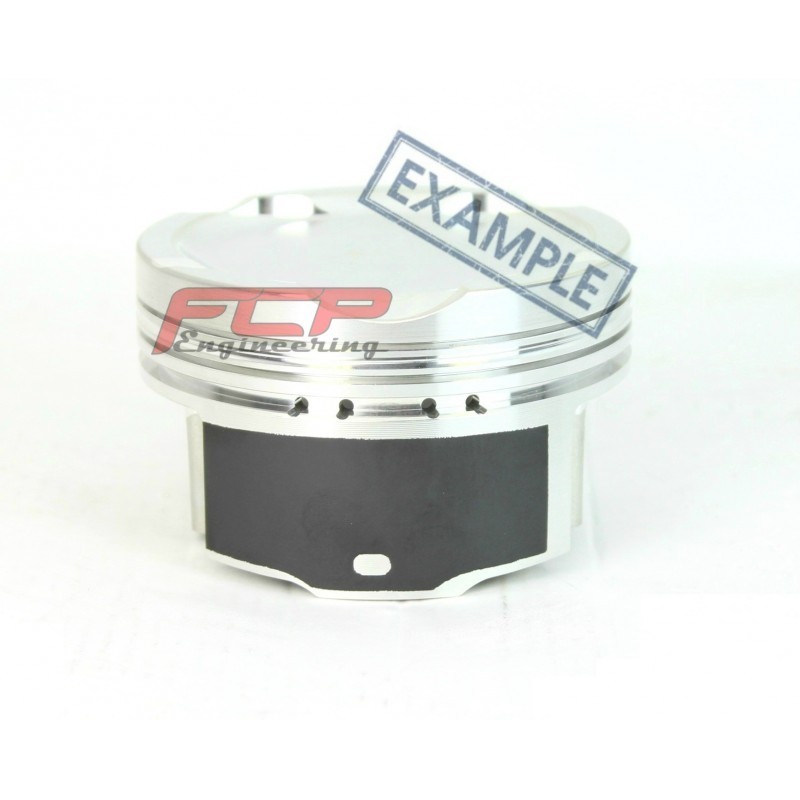

BMW 335i 535i N55B30 JE Pistons forged pistons 84mm CR 9.5 338096

Part number 338096

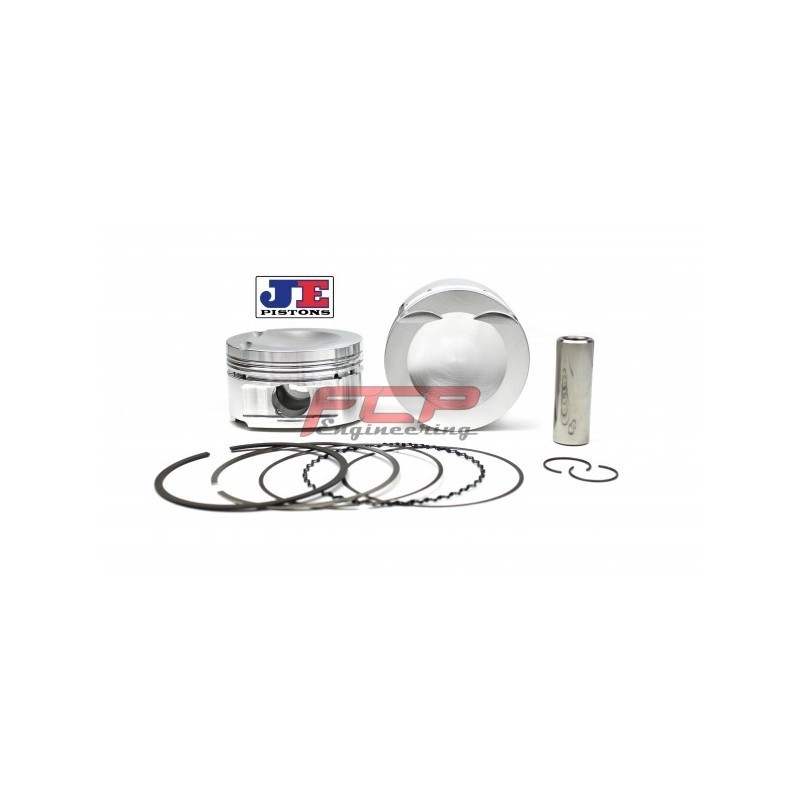

JE Pistons forged pistons kit (6 pcs.) 84mm CR 9.5:1
BMW E90, E91, E92, E93, E88, X6, F01 - 3.0 (N55B30)

1 059,00 €

Доступность:1 шт.

Информация

Product detailed specification
Bore size	84.00mm
Stroke	89.60mm
JE Pistons compression ratio (CR)	9.5:1
OEM compression ratio (CR)	10.2:1
Dome volume (CC)	-14.7cm³
Compression height (CH)	32.40mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; FSR Coated skirt
Fits for	BMW - 3.0 24V Turbo (N55B30)

Вам также может понравиться

BMW 3.0 N54B30 N55B30 S55B30 ACL Race connecting rod bearings 6B1584H-STD

Part number 6B1584H-STD
ACL Race Series connecting rod bearings
BMW - 3.0 (N54B30, N55B30, S55B30)

209,00 €

BMW 135i 335i N55 S55 FCP H-beam steel connecting rods 144.3mm for...

Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHB144353622
Profile: H-beam
C to C: 144.3mm
Big end diameter: 53.6mm
Pin diameter: 22mm
Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (6 cylinder)
Advertised RPM rating: 9000RPM
BMW 135i E82/E88, M135i F20, M235i F22/F23, 335i E90/E91/E92/E93, 335i F30/F31, 435i F32/F33/F36, 535i F10/F11, 640i F12/F13, 740i F01, X1 E84, X3 F25, X4 F26, X5 E70, X5 F15, X6 E71, X6 F16, 335 GT F34, 535 GT F07
Fits aftermarket pistons

579,00 €

BMW 3.0 N54B30 N55B30 Athena Cooper Ring cylinder head gasket 86x1.5mm 330074R

Athena Racing 330 series Cooper Ring cylinder head gasket set.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number: 330074R
Gasket thickness: 1.50mm
Bore size: 86.00mm

Part number starting with 330
Athena advantages
Reinforced material	Asbestos free composite raw material OE approved
Stainless steel ring (AISI304)	Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required
Silicon beading	Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

299,00 €
