Part number FCPSLA2.7T/30.

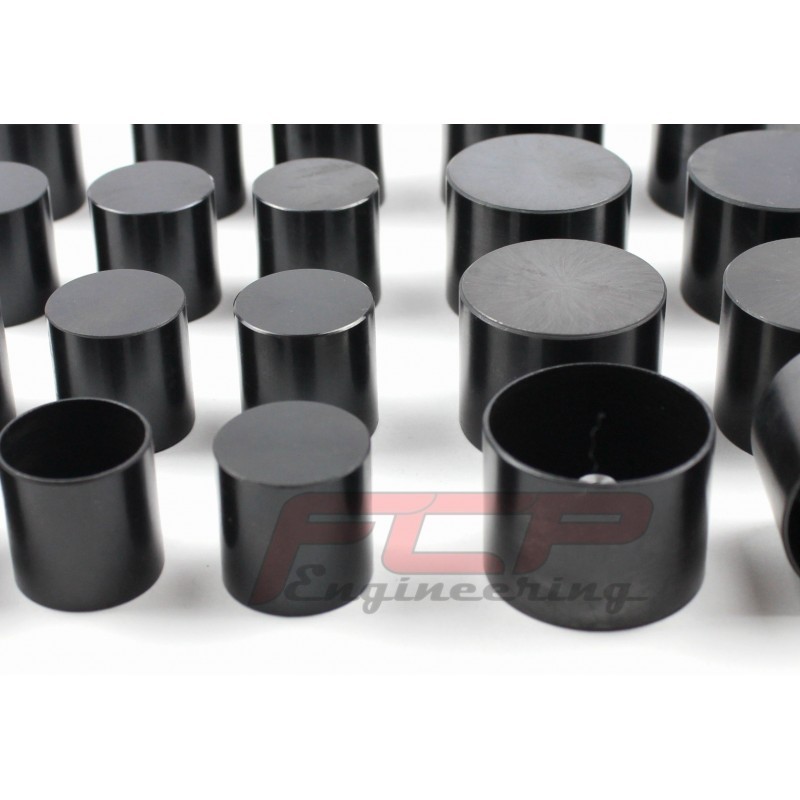

FCP Engineering mechanical racing solid lifters (tappets, cam followers).
Audi S4, RS4, A4, Allroad - 2.7TT 30V, 2.4 2.8 3.0 V6 30V (AGB, AZB, ASJ, AZR and etc.)
Lifter data:
30 pcs. FCP Engineering mechanical racing solid lifters.
Forged steel, nitride hardened surface, HRC 50.
Installed tappet height to camshaft must be adjusted with lash caps (not included).
Lifter adjustment requires:
18pcs. 6mm lash caps
12pcs. 7mm lash caps
Intake lifter data (18 pcs.):
Outer diameter - 23.97mm
Inner diameter - 23.97mm
Outer height - 24.20mm
Stem length - 15.00mm
Stud diameter - 6.00mm
Weight - 26g
Exhaust lifter data (12 pcs.):
Outer diameter - 33.47mm
Inner diameter - 31.50mm
Outer height - 26.00mm
Stem length - 15.00mm
Stud diameter - 7.00mm
Weight - 43g
Valve guide info:
Part number: FCPVGA2.7T/30
Material: Bronze
Length: 36mm
Inner diameter: 6mm
Outer diameter: 11.06mm
For intake and exhaust valves
Part number 61-33500-00
Victor Reinz MLS cylinder head gasket set
Audi RS4 - 2.7T V6
Product detailed specification |
|
Model number |
AEVI-1103 |
Head diameter |
29.90mm |
Stem diameter |
5.94mm |
Length |
103.90mm |
Material |
Inconel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AEVI-1106S |
Head diameter |
30.90mm |
Stem diameter |
5.94mm |
Length |
103.90mm |
Material |
Inconel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AEVN-1103 |
Head diameter |
29.90mm |
Stem diameter |
5.94mm |
Length |
103.90mm |
Material |
Black nitrided stainless steel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AIVN-1103 |
Head diameter |
26.90mm |
Stem diameter |
5.96mm |
Length |
105.90mm |
Material |
Black nitrided stainless steel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AIVN-1106S |
Head diameter |
27.90mm |
Stem diameter |
5.96mm |
Length |
105.90mm |
Material |
Black nitrided stainless steel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AEVI-1103S |
Head diameter |
29.90mm |
Stem diameter |
5.94mm |
Length |
103.90mm |
Material |
Inconel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Product detailed specification |
|
Model number |
AIVN-1103S |
Head diameter |
26.90mm |
Stem diameter |
5.96mm |
Length |
105.90mm |
Material |
Black nitrided stainless steel |
Fits for |
Audi / VW – 1.8 1.8T 2.4 2.7T 2.8 3.0 (5V per cylinder) |
Part number 61-31350-00
Victor Reinz MLS cylinder head gasket set
Audi A4, A6, S4, Allroad - 2.4 2.7T V6
Product detailed specification |
|
Bore size |
81.00mm |
Stroke |
92.80mm |
JE Pistons compression ratio (CR) |
9.0:1 |
OEM compression ratio (CR) |
10.0:1 |
Dome volume (CC) |
-3.30cm3 |
Compression height (CH) |
30.70mm |
Pin diameter |
21mm |
Features |
Accepts Turbo and Nitrous; Round skirt |
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
Product detailed specification |
|
Bore size |
82.00mm |
Stroke |
86.40mm |
JE Pistons compression ratio (CR) |
9.0:1 |
OEM compression ratio (CR) |
9.3:1 |
Dome volume (CC) |
-4.50cm3 |
Compression height (CH) |
30.70mm |
Pin diameter |
21mm |
Features |
Accepts Turbo and Nitrous; Round skirt |
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
Product detailed specification |
|
Bore size |
81.50mm |
Stroke |
86.40mm |
JE Pistons compression ratio (CR) |
9.0:1 |
OEM compression ratio (CR) |
9.3:1 |
Dome volume (CC) |
-3.90cm3 |
Compression height (CH) |
30.70mm |
Pin diameter |
21mm |
Features |
Accepts Turbo and Nitrous; Round skirt |
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
