Part number FCPRHVW16156820B3/8

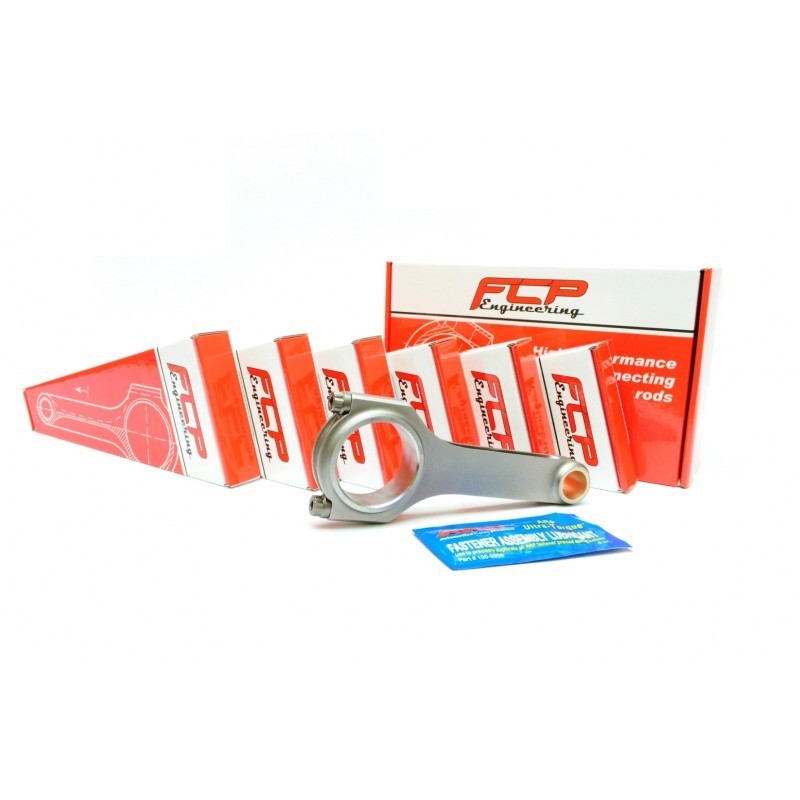

FCP Engineering H-beam forged steel connecting rods 161mm
Audi A3 / TT - 3.2 Turbo (BFH, BML)
VW Golf / New Beetle R32 - 3.2 Turbo (BFH, BML)
VW Passat - 3.6 Turbo (BWS, BHK, CDVA)
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHVW16156820B3/8
Profile: H-beam
C to C: 161mm
Big end diameter: 56.8mm
Pin diameter: 20mm

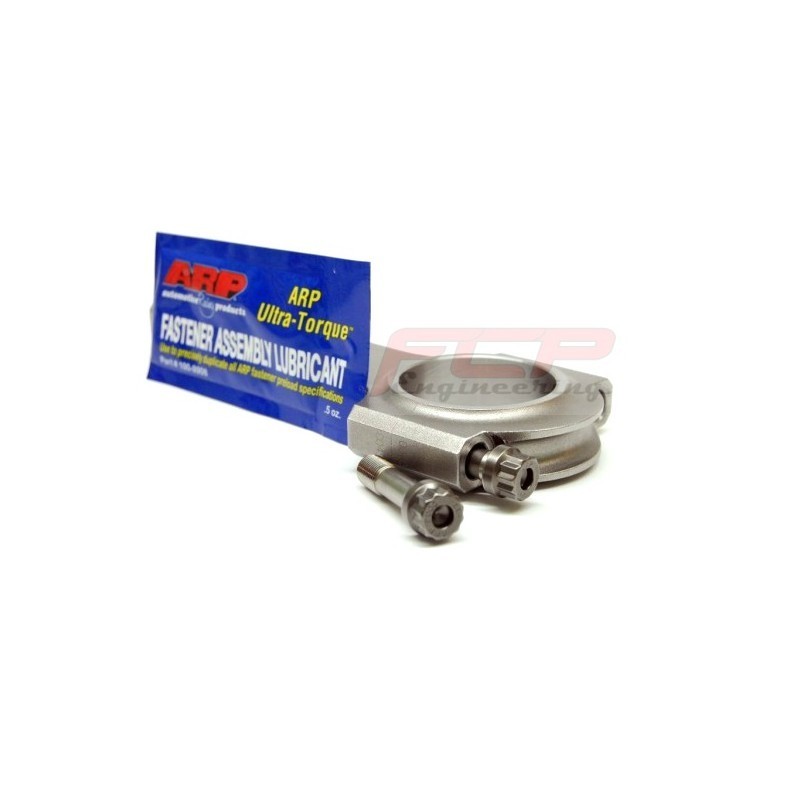

Quantity: 6 pcs., 12 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 800HP (6 cylinder)
Advertised RPM rating: 9000RPM
Made to be used with standard pistons and Turbo
Athena Racing 338 series multilayer steel (MLS) cylinder head gasket.
Athena MLS gaskets are designed to suit the requirements of today’s competition engines offering enhanced sealing compared to the OEM product.
The gaskets are assembled from 2-5 layers of high quality stainless and spring steels.
Part number: 338321R
Gasket thickness: 1.65mm
Bore size: 83.00mm
|
Part number starting with 338 |
|
|
Athena advantages |
|
|
Optimized radius embossing shape |
The round shape of the embossing increases sealing on cylinder bore, oil and cooling water passages and improves spring back strength |
|
Advanced stopper technology |
State of the technology enhances sealing pressure around the cylinder. Highest sealing properties in high power engines |
|
Coating technology |
Designed & engineered by Athena the special coating applied on steel surfaces, improves temperature resistance & reliability of the head gasket |
|
Product detailed specification |
|
|
Bore size |
82.00mm |
|
Stroke |
90.30mm |
|
JE Pistons compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.5:1 |
|
Dome volume (CC) |
-11.50cm3 |
|
Compression height (CH) |
32.39mm |
|
Pin diameter |
20mm |
|
Features |
Accepts Turbo and Nitrous; Full round skirt |
|
Fits for |
VW VR6 2.8 2.9 12V Turbo (AAA, AES, AMY, ABV) |
|
Product detailed specification |
|
|
Model number |
VWEVI-1010 |
|
Head diameter |
36.00mm |
|
Stem diameter |
6.95mm |
|
Length |
106.95mm |
|
Material |
Inconel |
|
Fits for |
VW Corrado, Golf, Passat – 2.8 2.9 12V VR6 |
