Part number 186235

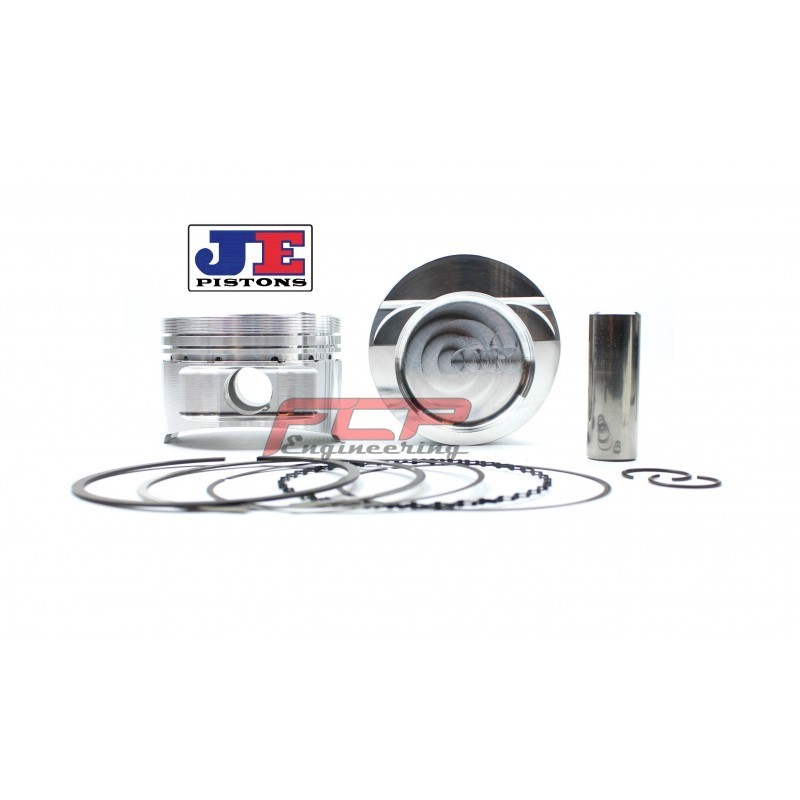

JE Piston forged piston kit (6 pcs.) CR 9.0:1 82.00mm
VW Corrado, Golf, Sharan - 2.8 2.9 12V VR6 Turbo (AAA, AES, AMY, ABV)
|
Product detailed specification |
|
|
Bore size |
82.00mm |
|
Stroke |
90.30mm |
|
JE Pistons compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.5:1 |
|
Dome volume (CC) |
-11.50cm3 |
|
Compression height (CH) |
32.39mm |
|
Pin diameter |
20mm |
|
Features |
Accepts Turbo and Nitrous; Full round skirt |
|
Fits for |
VW VR6 2.8 2.9 12V Turbo (AAA, AES, AMY, ABV) |
|
|||||||
| Quantity | 7 | ||||||
| Crankshaft | 59.977 / 59.959 | ||||||
| Housing | 65.001 / 65.009 | ||||||
| Max Wall | 2.502 | ||||||
| Max Length | 17.000 |
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 53.978 / 53.957 | ||||||
| Housing | 56.799 / 56.820 | ||||||
| Max Wall | 1.402 | ||||||
| Max Length | 16.901 |
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 53.978 / 53.957 | ||||||
| Housing | 56.799 / 56.820 | ||||||
| Max Wall | 1.402 | ||||||
| Max Length | 16.901 |
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 53.978 / 53.957 | ||||||
| Housing | 56.799 / 56.820 | ||||||
| Max Wall | 1.402 | ||||||
| Max Length | 16.901 |
|
|||||||
| Quantity | 6 | ||||||
| Crankshaft | 53.978 / 53.957 | ||||||
| Housing | 56.799 / 56.820 | ||||||
| Max Wall | 1.402 | ||||||
| Max Length | 16.901 |
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHVW16456820B5/16"
Profile: H-beam
C to C: 164mm
Big end diameter: 56.8mm
Pin diameter: 20mm
Quantity: 6 pcs., 12 pcs. ARP2000 5/16" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 800HP (6 cylinder)
Advertised RPM rating: 9000RPM
Audi A3 / TT - 3.2 (BFH, BML)
VW Golf / Jetta - 2.8 2.9 (AAA, AFP, BDF, AQP, AUE, BDE)
VW Corrado - 2.8 2.9 (AAA, AFP)
VW Golf / New Beetle R32 - 3.2 (BFH, BML)
VW Golf / Jetta - 2.3 VR5 (AGZ, AQN)
Reached 1103HP by our clients with out any fail!
