Part number FCPRHVW15950621-4

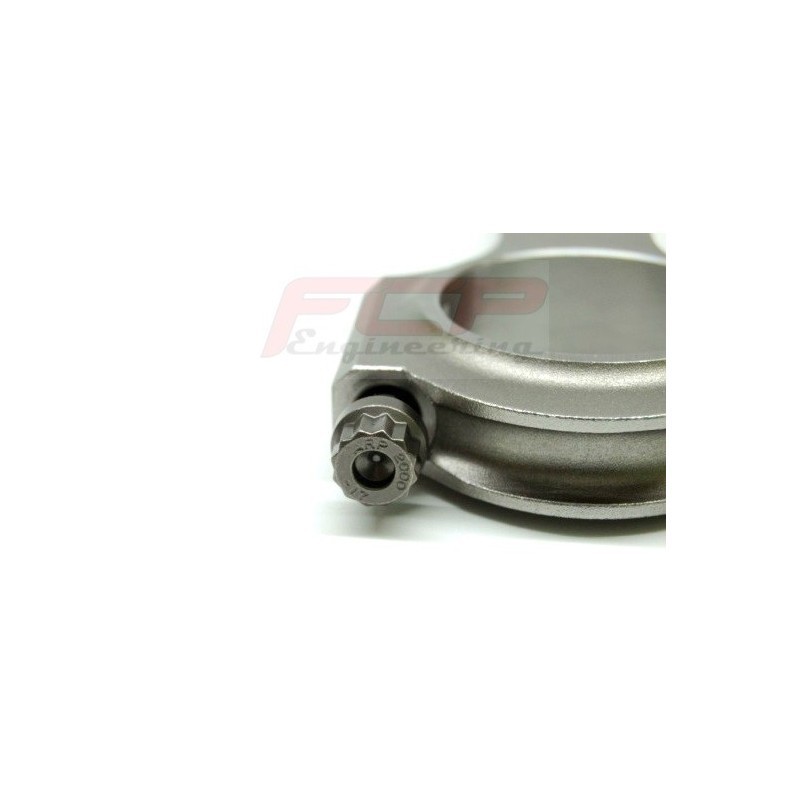

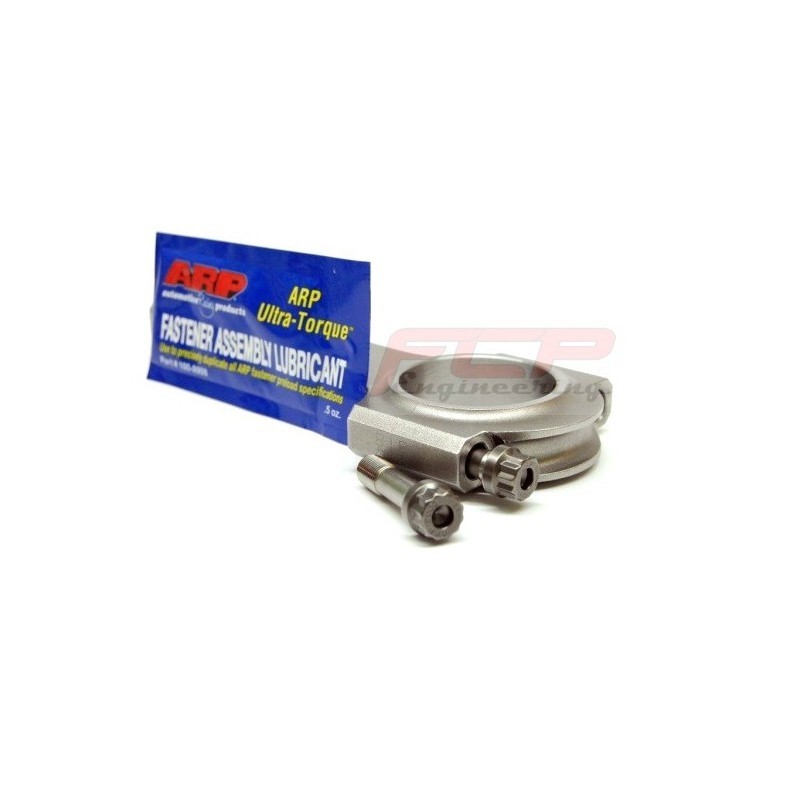

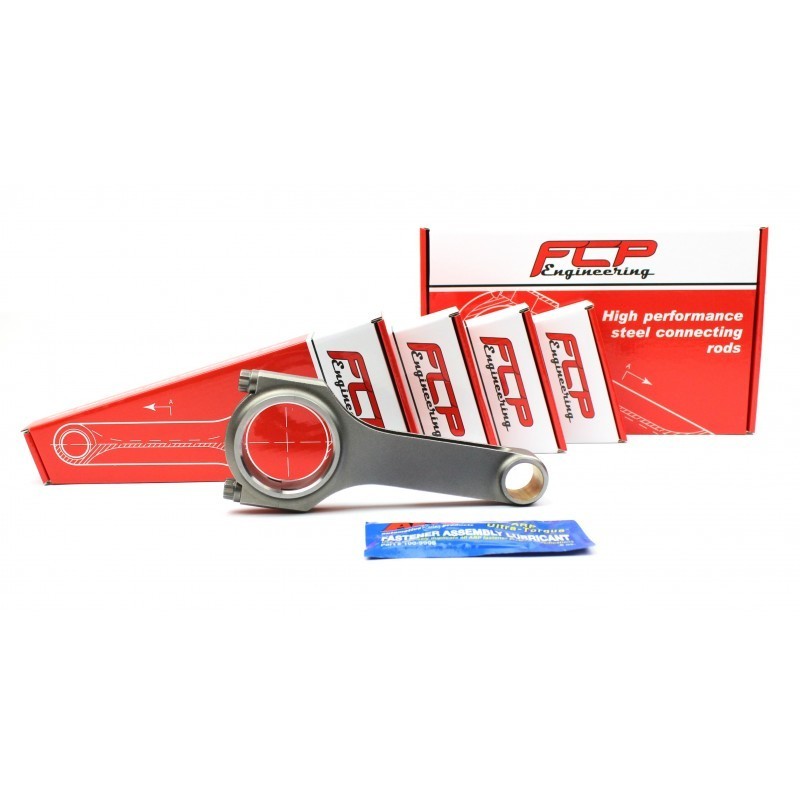

FCP Engineering H-beam steel connecting rods kit (4 pcs.) 159mm
Audi / VW 2.0 8V-16V engines with 236mm block (ABF, ABA, AAD, 2E)
Product detailed specification
Manufacturer: FCP Engineering
|
|||||||
Quantity | 4 | ||||||
Crankshaft | 47.777 / 47.757 | ||||||
Housing | 50.599 / 50.620 | ||||||
Max Wall | 1.402 | ||||||
Max Length | 18.971 |
1,2,3,5 | 4 | |||||||||||||
Pairs & PN |
|
|
||||||||||||
Quantity | 4 | 1 | ||||||||||||
Crankshaft | 53.978 / 53.957 | 53.978 / 53.957 | ||||||||||||
Housing | 58.999 / 59.017 | 58.999 / 59.017 | ||||||||||||
Max Wall | 2.499 | 2.499 | ||||||||||||
Max Length | 18.461 | 18.461 |
Part number: FCPPVW83T
Manufacturer: FCP Engineering
Forged high performance pistons for various applications in nearly all engine types for racing and street use.
Made of 4032-T6, piston skirt is molibden coated.
Bore size: 83.00mm
Stroke: 92.80mm
Dome dish: -11cc
Compression ratio (CR): 8.8:1
Compression height (CH): 31.60mm
Connecting rod length must be: 159mm
Piston pin: 21mm HD tool steel pin designed for high boost application
VW Golf III, Passat / Seat Cordoba, Ibiza, Toledo - 2.0 16V (ABF) Turbo
Product detailed specification |
|
Bore size |
83.00mm |
Stroke |
92.80mm |
JE Pistons compression ratio (CR) |
8.5:1 |
OEM compression ratio (CR) |
10.5:1 |
Dome volume (CC) |
-9.4cm3 |
Compression height (CH) |
30.60mm |
Pin diameter |
21mm |
Features |
Accepts Turbo and Nitrous; FSR series skirt |
Fits for |
VW / Seat - 2.0 16V ABF |
ENGINE BEARINGS | ||
CON ROD BEARING SET |
||
Part# | ||
4B1606H |
4B1606HX |
|
Sizes | STD, .025, .25, .50 | STD |
Oil Clearance | Standard | + 0.001" Extra |
Half Type | Identical Halves | |
Material |
Tri-metal Hardened steel backs |
|
Min Std Shaft Size |
1.8802" /47.758mm |
|
Max Std Shaft Size |
1.8810" /47.778mm |
|
Min Std Tunnel Size |
1.9921" /50.600mm |
|
Max Std Tunnel Size |
1.9929" /50.619mm |
|
Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
Max Overall Length |
0.748" / 19.00mm |
|
Notes | Bearing has 1.65mm oil hole at crown | |
Diagram |
|
Engines Audi / VW - 1.6 1.8 2.0 (2V, 4V, 5V, Turbo applications, 1983-2003)
ENGINE BEARINGS | ||
MAIN BEARING SET |
||
Part# | ||
5M1644H |
5M1644HX |
|
Sizes | STD, .25, .50 | STD |
Oil Clearance | Standard | + 0.001" Extra |
Half Type | Upper & Lower | |
Material | Tri-metal | |
Min Std Shaft Size | 2.1243in / 53.958mm | |
Max Std Shaft Size | 2.1251in / 53.978mm | |
Min Std Tunnel Size | 2.3228in / 59.000mm | |
Max Std Tunnel Size | 2.3236in / 59.019mm | |
Max Wall at Crown | 0.0985in / 2.502mm | 0.0980in / 2.489mm |
Max Overall Length | 0.728in / 18.49mm | |
Notes | Set contain 6 x 1648H and 4 x 1644H shells. Use 1648H shell in #4 position as upper and lower. | |
Diagram |
|
