Part number 6B8100HX-STD

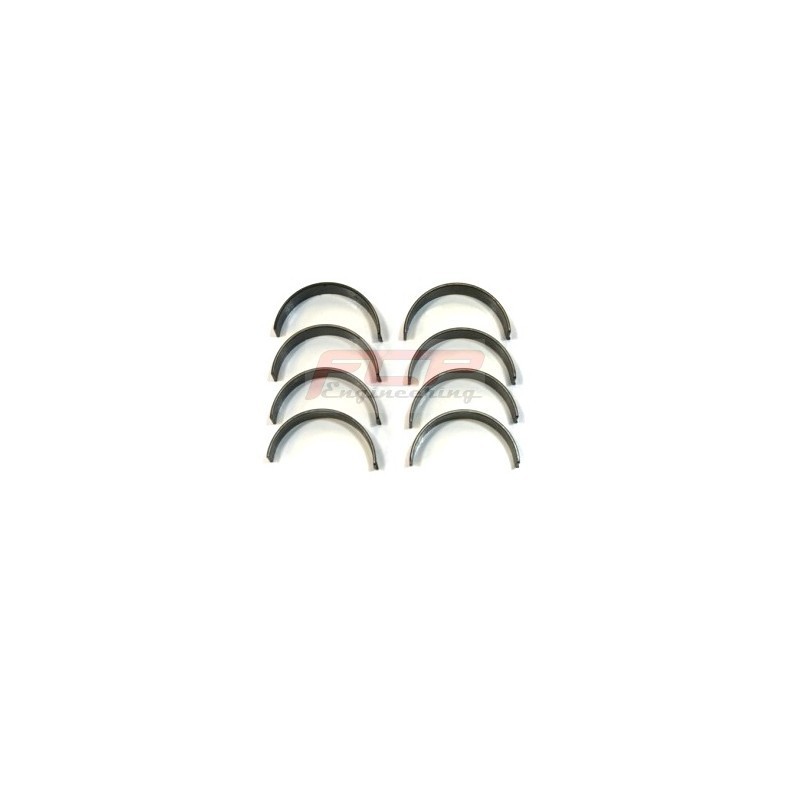

ACL Race Series connecting rod bearings
Toyota - 2.5 3.0 (1JZGE, 1JZGTE, 2JZGE, 2JZGTE)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 6B8100H |
6B8100HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
2.0465in / 51.981mm |
|
| Max Std Shaft Size |
2.0472in / 52mm |
|
| Min Std Tunnel Size |
2.1663in / 55.024mm |
|
| Max Std Tunnel Size |
2.167in / 55.042mm |
|
| Max Wall at Crown |
0.0593in / 1.506mm |
0.0588in / 1.493mm |
| Max Overall Length |
0.7598in / 19.3mm |
|
| Notes | ||
|
Diagram |
 |
|
