Part number 7M8103H-STD

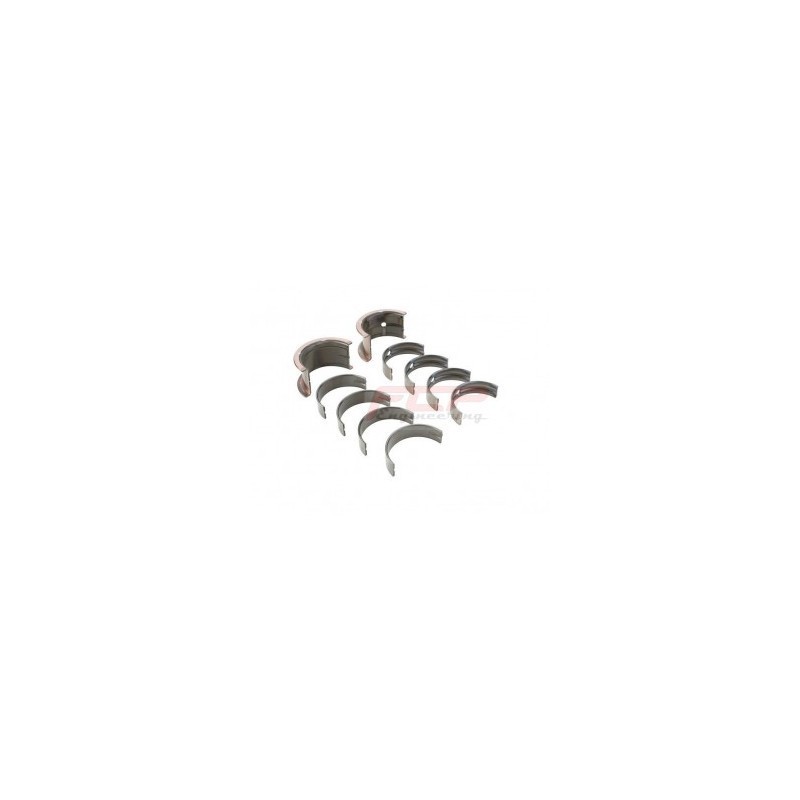

ACL Race Series main bearings
Toyota - 2.5 3.0 (1JZGE, 1JZGTE, 2JZGE, 2JZGTE)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 7M8103H |
7M8103HX |
|
| Sizes | STD, .025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.4403in / 61.984mm |
|
| Max Std Shaft Size |
2.441in / 62.001mm |
|
| Min Std Tunnel Size |
2.5992in / 66.02mm |
|
| Max Std Tunnel Size |
2.5998in / 66.035mm |
|
| Max Wall at Crown |
0.0789in / 2.004mm |
0.0784in / 1.991mm |
| Max Overall Length |
0.7874in / 20mm (8103H/HX) 0.9055in / 23mm (8104H/HX) |
|
| Notes | ||
|
Diagram |
8103H & HX - Positions 2,3,4,5,6,7
8104H & HX - Position 1
|
|
