Part number 5M8297H-STD

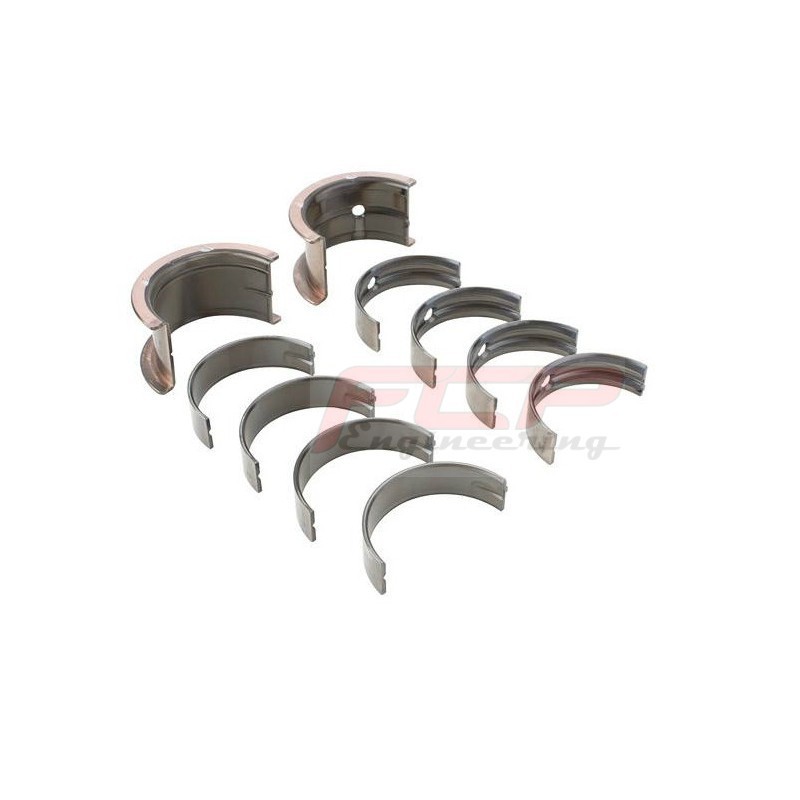

ACL Race Series main bearings (for thrust in #3 position)
Subaru - 1.5 1.6 1.8 2.0 2.2 2.5 (EJ15, EJ16, EJ18, EJ20, EJ22, EJ25, EJ20T, EJ20TT, EJ22T, EJ25T)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M8297H |
5M8297HX |
|
| Sizes | STD, .025, .25, 0.5 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.3616in / 59.984mm |
|
| Max Std Shaft Size |
2.3622in / 60.000mm |
|
| Min Std Tunnel Size |
2.5197in / 64.000mm |
|
| Max Std Tunnel Size |
2.5205in / 64.020mm |
|
| Max Wall at Crown |
0.0789in / 2.005mm |
0.0784in / 1.992mm |
| Max Overall Length |
0.7480in / 19.00mm (8297H/HX) 0.5953in / 15.12mm (8298H/HX) 0.8642in / 21.95mm (8299H/HX - Flange) |
|
| Notes | Thrust in #3 pos. | |
|
Diagram |
8297H & HX - Positions 1, 5
8298H & HX - Positions 2, 4
8299H & HX - Position 3
|
|
