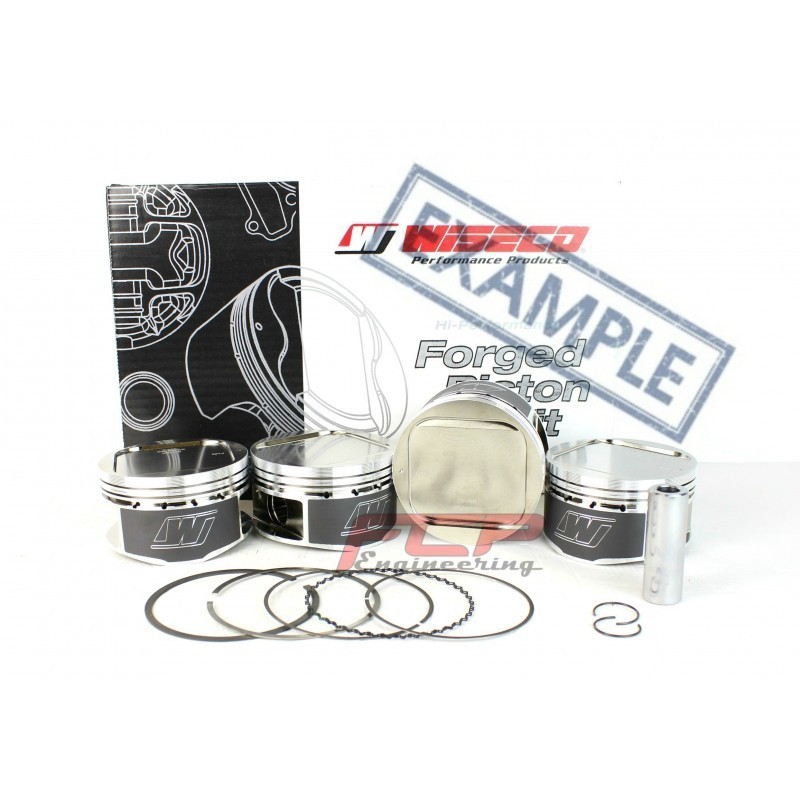

BMW M3 E46 3.2 S54B32 Wiseco forged pistons 87.25mm CR 11.1:1 KE126M8725

Part number KE126M8725
Wiseco forged piston kit (6 pcs.) CR 11.1:1 87.25mm
BMW M3 E46 - 3.2 (S54B32)

1 099,00 €
Доступность:0 шт.
Информация

Product detailed specification

Bore size

87.25mm

Stroke

91.00mm

Wiseco pistons compression ratio (CR)

11.1:1

OEM compression ratio (CR)

11.3:1

Dome volume (CC)

-14.00cm3

Compression height (CH)

32.00mm

Pin diameter

21mm

Features

Accepts Turbo and Nitrous; Full round piston skirt

Fits for

BMW M3 E46 - 3.2 S54B32
