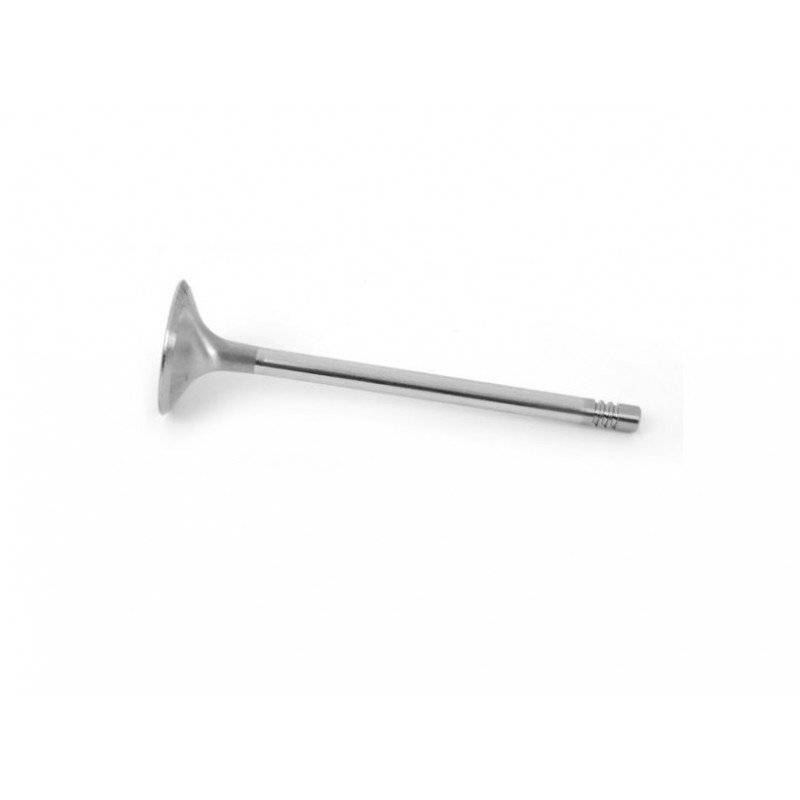

BMW M3 M5 S14 S38 Supertech Inconel exhaust valve BMEVI-1006/L

Part number BMEVI-1006/L
Supertech Inconel/Nimonic intake valve
BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38)
36,00 €
Доступность:11 шт.
Информация

Product detailed specification

Model number

BMEVI-1006/L

Head diameter

32.00mm

Stem diameter

6.95mm

Length

125.00mm

Material

Inconel 751 / Nimonic

Fits for

BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38)

Вам также может понравиться

BMW M3 M5 S14 S38 Supertech intake valve BMIVN-1006/L

Product detailed specification

Model number

BMIVN-1006/L

Head diameter

37.00mm

Stem diameter

6.98mm

Length

123.00mm

Material

Black nitrided stainless steel

Fits for

BMW M3, M5 - 2.3, 2.5, 3.6, 3.8 (S14B23, S14B25, S38B36, S38B38)

26,00 €
BMW M3 M5 S14 S38 Supertech valve guide GDE-BMS14-7
Part number GDE-BMS14-7
Supertech valve guide
Material: Manganese Bronze
Outer diameter: 12.03mm
For 7mm valves
BMW M3, M5 (S14, S38)
7,00 €
BMW M3 E30 S14 ACL Race connecting rod bearings 4B1568H-STD
 ENGINE BEARINGS

CON ROD BEARING SET

Part#
4B1568H

4B1568HX


Sizes STD, .025, .25 STD
Oil Clearance Standard + 0.001" Extra
Half Type Identical Halves
Material

Tri-metal Hardened steel backs

Min Std Shaft Size

1.8888in / 47.975mm

Max Std Shaft Size

1.8894in / 47.9911mm

Min Std Tunnel Size

2.0472in / 52.000mm

Max Std Tunnel Size

2.0478in / 52.015mm

Max Wall at Crown

0.0785in / 1.993mm

0.0780in / 1.980mm

Max Overall Length

0.787in / 20.00mm

Notes ..

Diagram
(Top View)

Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
109,00 €
BMW M3 E30 S14 ACL Race connecting rod bearings 4B1568H-0.25
 ENGINE BEARINGS

CON ROD BEARING SET

Part#
4B1568H

4B1568HX


Sizes STD, .025, .25 STD
Oil Clearance Standard + 0.001" Extra
Half Type Identical Halves
Material

Tri-metal Hardened steel backs

Min Std Shaft Size

1.8888in / 47.975mm

Max Std Shaft Size

1.8894in / 47.9911mm

Min Std Tunnel Size

2.0472in / 52.000mm

Max Std Tunnel Size

2.0478in / 52.015mm

Max Wall at Crown

0.0785in / 1.993mm

0.0780in / 1.980mm

Max Overall Length

0.787in / 20.00mm

Notes ..

Diagram
(Top View)

Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
109,00 €
BMW M3 E30 S14 King Racing connecting rod bearings CR4596XP-STD
AM AM
1482.jpg 1482.jpg
C 459 C 459
Quantity  4
Crankshaft  61.887 / 61.874
Housing  67.043 / 67.056
Max Wall  2.543
Max Length  31.001
Engines: BMW M3 E30 - 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
93,00 €
BMW M3 E30 2.3 S14 ARP head stud kit 201-4605
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
197,00 €
BMW 1.5-2.0 (M10), 2.3 (S14) ARP main stud kit 201-5001
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
146,00 €
BMW 2.0 2.3 S14 Athena Cooper Ring head gasket 95x2mm 330021R

Athena Racing 330 series Cooper Ring cylinder head gasket.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Parts number 330021R
Gasket thickness: 2.00mm
Bore size: 95.00mm

Part number starting with 330

Athena advantages

Reinforced material

Asbestos free composite raw material OE approved

Stainless steel ring (AISI304)

Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required

Silicon beading

Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

209,00 €
BMW M3 E30 2.3 2.5 S14 FCP H-beam forged steel connecting rods 144mm

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHB1445222-4
Profile: H-beam
C to C: 144mm
Big end diameter: 52mm
Pin diameter: 22mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM

BMW M3 E30 - 2.3 2.5 (S14B23, S14B25)
399,00 €
BMW M5 S38 Supertech valve spring set SPRK-H1005D-S38
Spring data:
Seat pressure - 90lbs @ 35.5mm
Open (lift) pressure - 230lbs @ 13.0mm
Spring coil bind - 21.50mm
Max lift - 14.80mm
Rate - 11.50mm
Outer spring outer diameter - 29.65mm
Outer spring inner diameter - 21.85mm
Inner spring outer diameter - 20.50mm
Inner spring inner diameter - 15.50mm

Set includes:
Double springs - 24 pcs. SPR-H1005D-S14
Titanium retainers - 24 pcs. RET-BMS14-T1
Seats - 24 pcs. SEAT-H1002-S14
840,00 €
BMW M3 S14 Supertech valve spring set SPRK-H1005D-S14
Spring data:
Seat pressure - 90lbs @ 35.5mm
Open (lift) pressure - 230lbs @ 13.0mm
Spring coil bind - 21.50mm
Max lift - 14.80mm
Rate - 11.50mm
Outer spring outer diameter - 29.65mm
Outer spring inner diameter - 21.85mm
Inner spring outer diameter - 20.50mm
Inner spring inner diameter - 15.50mm

Set includes:
Double springs - 16 pcs. SPR-H1005D-S14
Titanium retainers - 16 pcs. RET-BMS14-T1
Seats - 16 pcs. SEAT-H1002-S14
640,00 €
BMW M3 E30 2.3 S14 ARP2000 connecting rod bolt kit M11 201-6104
ARP is a manufacturer of fasteners/bolts found in engines and drivelines, ranging from OEM replacement parts to specialty hardware for racing applications. ARP is the world leader in fastener technology.
170,00 €
BMW M3 E30 S14 ACL Race connecting rod bearings 4B1568H-0.025
 ENGINE BEARINGS

CON ROD BEARING SET

Part#
4B1568H

4B1568HX


Sizes STD, .025, .25 STD
Oil Clearance Standard + 0.001" Extra
Half Type Identical Halves
Material

Tri-metal Hardened steel backs

Min Std Shaft Size

1.8888in / 47.975mm

Max Std Shaft Size

1.8894in / 47.9911mm

Min Std Tunnel Size

2.0472in / 52.000mm

Max Std Tunnel Size

2.0478in / 52.015mm

Max Wall at Crown

0.0785in / 1.993mm

0.0780in / 1.980mm

Max Overall Length

0.787in / 20.00mm

Notes ..

Diagram
(Top View)

Engines BMW 2.0 2.3 2.5 (S14B20, S14B23, S14B25)
89,00 €
Audi / VW / BMW / OPEL Supertech 7mm triple groove valve lock KPR-VW7-T

Engines:

BMW - 6cyl 2.5l M20
BMW - 6cyl 3.6l S38
Opel / Vauxhall - A Turbo C20LET DOHC 2.0l 16v
Volkswagen - 211 4cyl 1.8l AN
Volkswagen - 211 4cyl 1.8l AP
Volkswagen - 211 4cyl 1.8l AT
Volkswagen - 211 4cyl 1.8l AW
Volkswagen - 211 4cyl 1.8l ED
Volkswagen - 4cyl 2.0l ABA
Volkswagen - Base 4cyl 1.8l AN
Volkswagen - Base 4cyl 1.8l AT
Volkswagen - Base 4cyl 1.8l AW
Volkswagen - Base 4cyl 1.8l EC
Volkswagen - Base 4cyl 1.8l UM
Volkswagen - Fahrenheit 4cyl 2.0l Turbo BPY
Volkswagen - G60 4cyl 1.8l Supercharged PG
Volkswagen - GL 4cyl 1.8l JH
Volkswagen - GL 4cyl 1.8l UM
Volkswagen - High Line 4cyl 2.0l ABA
Volkswagen - Kombi 4cyl 2.0l CV
Volkswagen - Sport 4cyl 1.8l Turbo AWV
Volkswagen - Sport 4cyl 2.0l AVH
Volkswagen - Sport 4cyl 2.0l AZG
Volkswagen - TDI SEL 4cyl 2.0l Turbo
Volkswagen - Wolfsburg Edition 4cyl 1.8l JH
2,50 €
