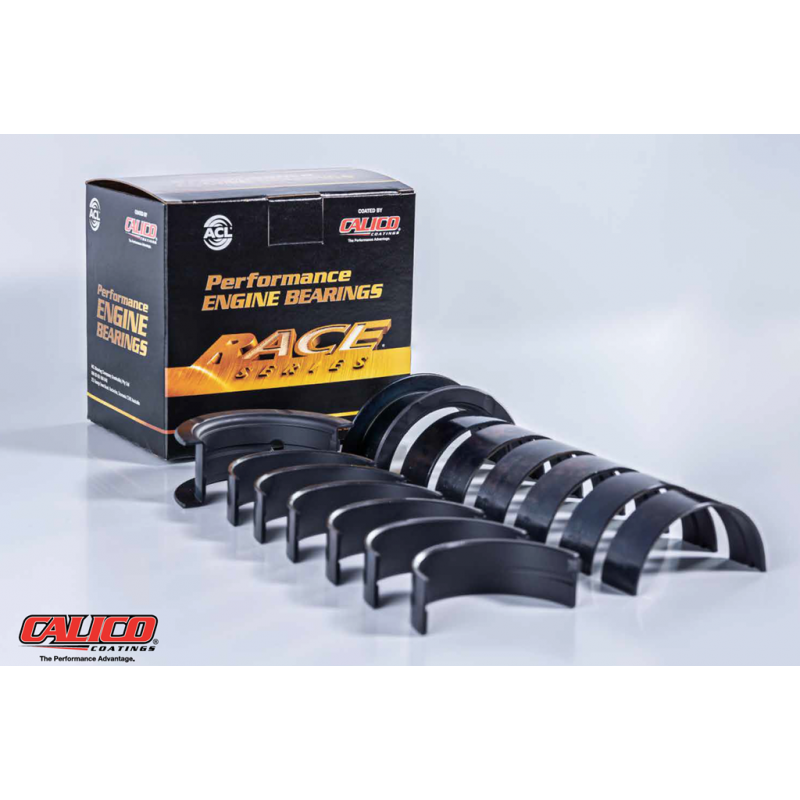

Mitsubishi 4G63T 4G64 ACL Race Calico main bearings 5M1219HC-STD

Part number 5M1219HC-STD
ACL Race Series with Calico CT-1 coating main bearings
Mitsubishi EVO 5-9 (1997->) - 2.0 2.4 (4G63, 4G63T, 4G64)

199,00 €

Доступность:1 шт.

Информация

ENGINE BEARINGS
	MAIN BEARING SET
	Part#
	5M1219H	5M1219HX
Sizes	STD,.025, .25	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-Metal
Min Std Shaft Size	2.2435in / 56.985mm
Max Std Shaft Size	2.2441in / 57.000mm
Min Std Tunnel Size	2.4016in / 61.000mm
Max Std Tunnel Size	2.4024in / 61.021mm
Max Wall at Crown	0.0783in / 1.990mm	0.0778in / 1.977mm
Max Overall Length	0.8268in / 21.00mm
Notes	For engines equipped with thrust washers
Diagram (Top View)

Engines Mitsubishi 4 cylinder 2.0 (4G63, 4G63-T, 4G64-S4)

CT-1 is a Dry Film Lubricant coating that helps reduce friction and abrasive wear. It provides intermittent dry lubrication and is not affected by dust or dirt. CT-1 is specifically engineered to withstand the extreme conditions of today's high performance engines. Professional engine builders enjoy a higher level of confidence with increased embedability, strength and durability.
