Part number 4B1146H-STD

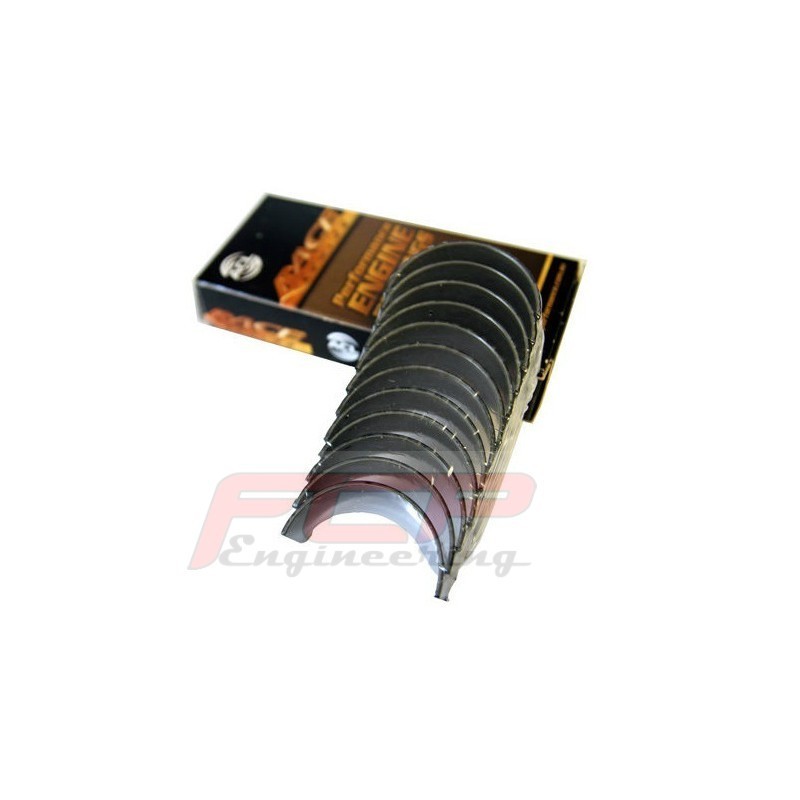

ACL Race series connecting rod bearings
Mitsubishi - 4D65, 4G61, 4G62, 4G63, 4G63-T, 4G64-S4 (up to 5/1992)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1146H |
4B1146HX |
|
| Sizes | STD,.025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7713in / 44.991mm |
|
| Max Std Shaft Size |
1.7717in / 45.000mm |
|
| Min Std Tunnel Size | 1.8898in / 48.000mm | |
| Max Std Tunnel Size |
1.8906in / 48.020mm |
|
| Max Wall at Crown |
0.0588in / 1.494mm |
0.0583in / 1.481mm |
| Max Overall Length |
0.925in / 23.50mm |
|
| Notes | ||
|
Diagram |
 |
|
