Part number 4B1185H-0.25

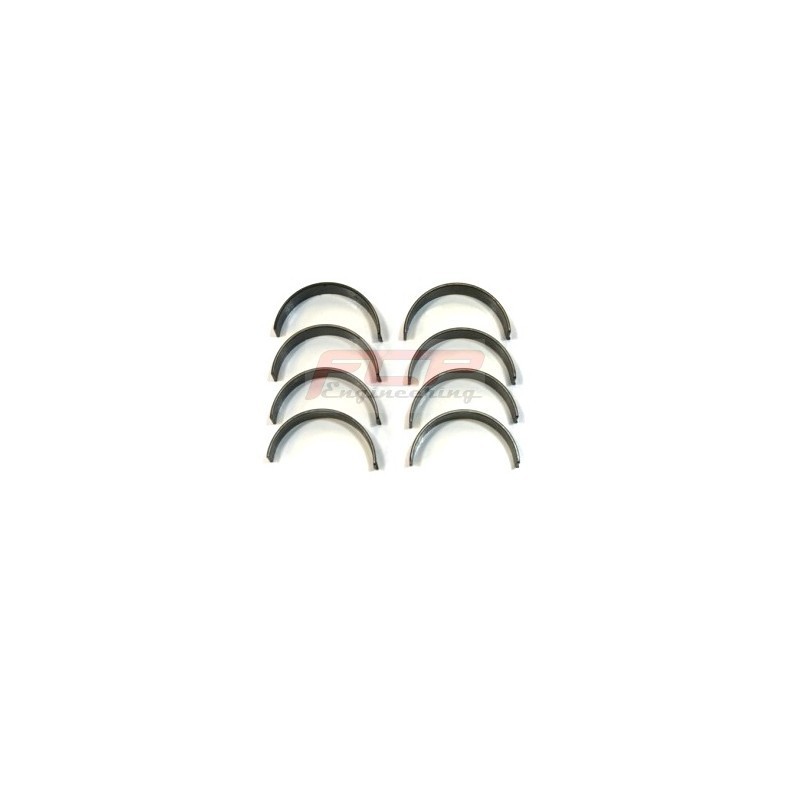

ACL Race Series connecting rod bearings
Mitsubishi - 2.0 Turbo (4G63, 4G63-T, 4G64-S4)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1185H |
4B1185HX |
|
| Sizes | STD,.025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7709in / 44.981mm |
|
| Max Std Shaft Size |
1.7715in / 44.996mm |
|
| Min Std Tunnel Size | 1.8897in / 47.998mm | |
| Max Std Tunnel Size |
1.8905in / 48.019mm |
|
| Max Wall at Crown |
0.0586in / 1.488mm |
0.0581in / 1.475mm |
| Max Overall Length |
0.8307in / 21.10mm |
|
| Notes | ||
|
Diagram |
 |
|
