BMW 1.8 16V M42 Athena MLS cylinder head gasket 87x1.6mm 338287R

Part number 338287R
Athena Racing MLS cylinder head gasket 87.00x1.60mm
BMW - 1.8 16V (M42B18)

199,00 €

Доступность:0 шт.

Notify me when available

Информация

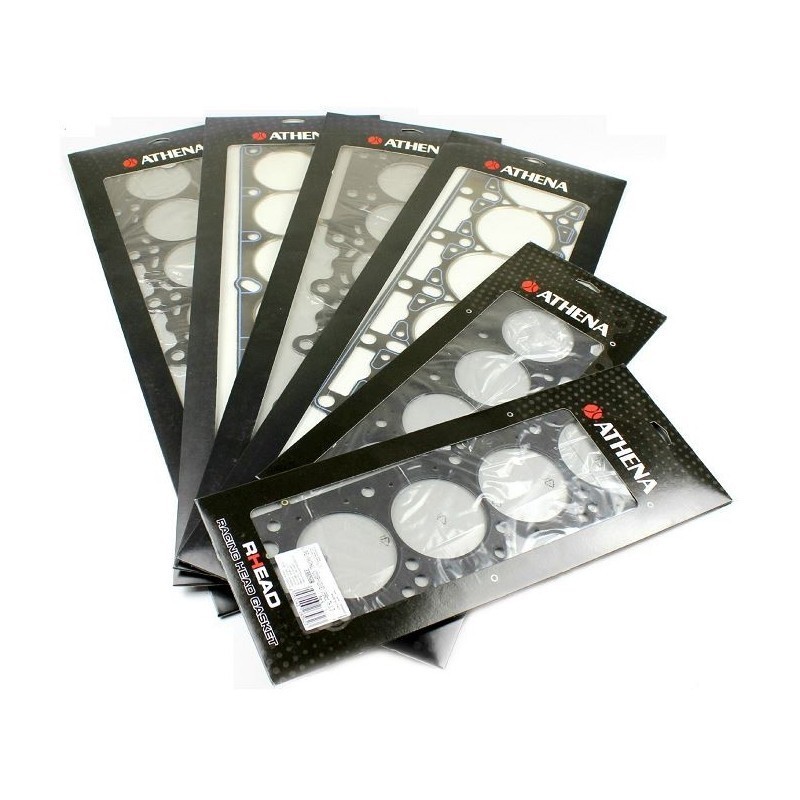

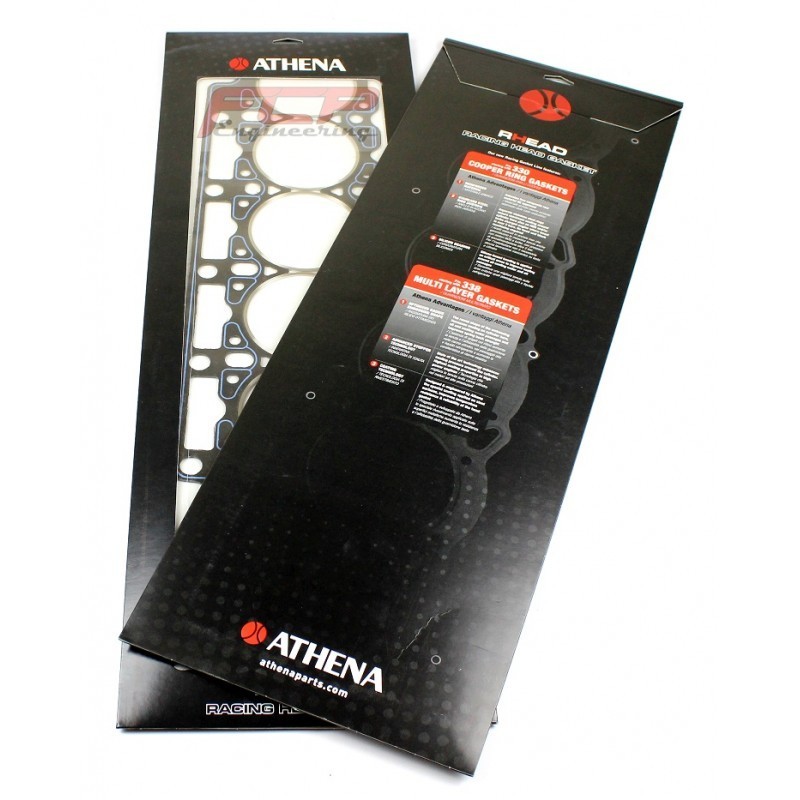

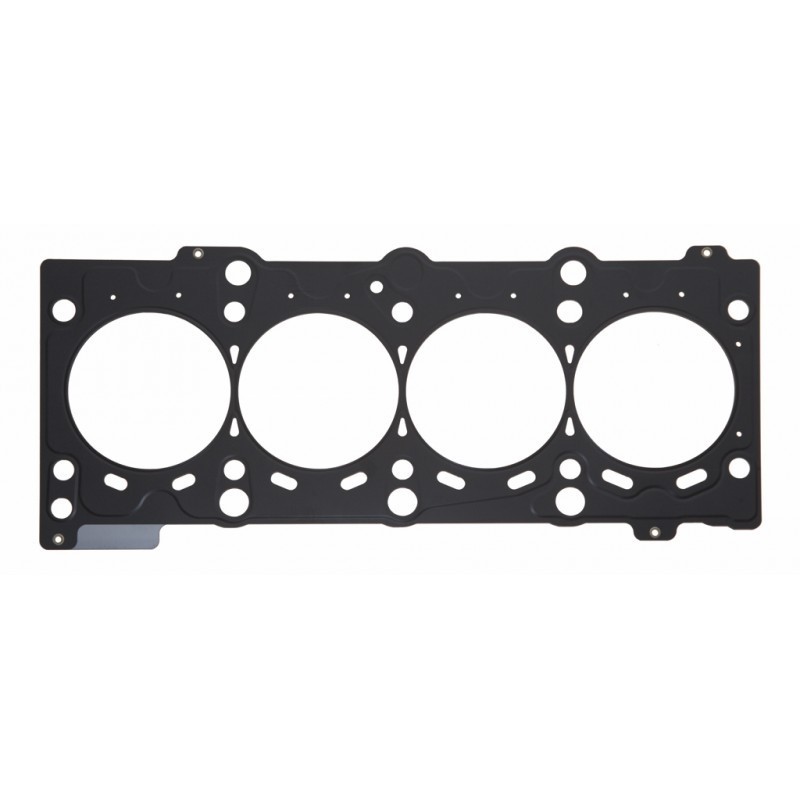

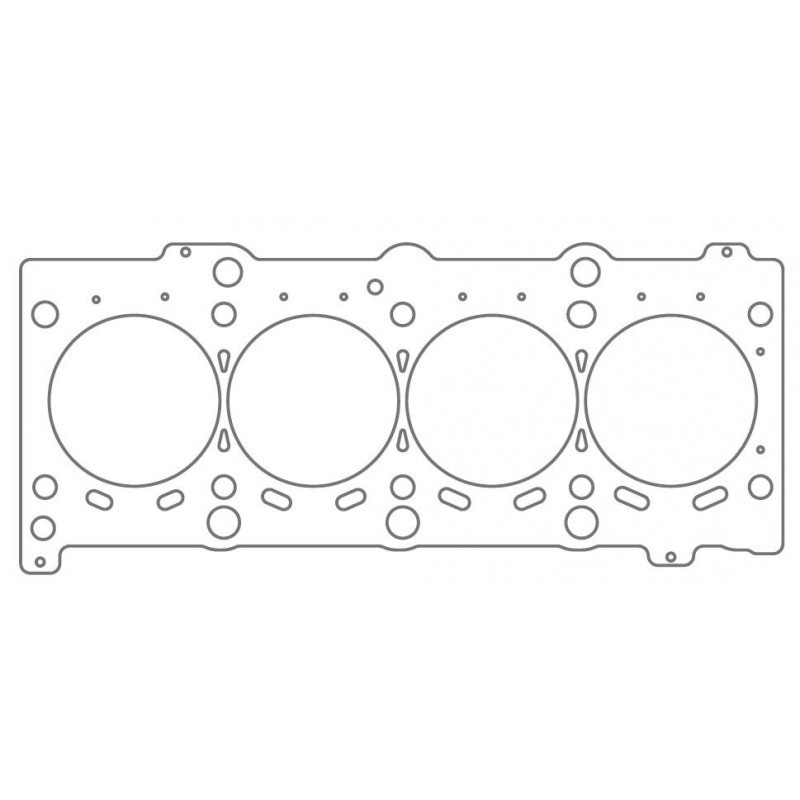

Athena Racing 338 series multilayer steel (MLS) cylinder head gasket.
Athena MLS gaskets are designed to suit the requirements of today’s competition engines offering enhanced sealing compared to the OEM product. The gaskets are assembled from 2-5 layers of high quality stainless and spring steels.
Part number: 338287R
Gasket thickness: 1.60mm
Bore size: 87.00mm

Part number starting with 338
Athena advantages
Optimized radius embossing shape	The round shape of the embossing increases sealing on cylinder bore, oil and cooling water passages and improves spring back strength
Advanced stopper technology	State of the technology enhances sealing pressure around the cylinder. Highest sealing properties in high power engines
Coating technology	Designed & engineered by Athena the special coating applied on steel surfaces, improves temperature resistance & reliability of the head gasket

Вам также может понравиться

BMW E30 E36 1.8 2.0 M42 S42 Supertech valve springs SPRK-H1005D-BM-16

Spring info:
Seat pressure - 94lbs @ 35.70mm
Open (lift) pressure - 209lbs @ 10mm
Spring coil bind - 20.70mm
Rate - 11.50lbs/mm
Max lift - 15.00mm
Outer spring outer diameter - 29.65mm
Outer spring inner diameter - 21.85mm
Inner spring outer diameter - 20.50mm
Inner spring inner diameter - 15.50mm

Set includes:
Dual springs - 16 pcs. SPR-H1005D-BM
Titanium retainers - 16 pcs. RET-AU5VE-T1
Seats - 16 pcs. SEAT-BM60

560,00 €

BMW 1.6 1.8 M20 M42 M43 M44 M40 FCP H-beam steel connecting rods 140mm

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHB1404822-4
Profile: H-beam
C to C: 140mm
Big end diameter: 48mm
Pin diameter: 22mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
BMW - 1.6 1.8 (M20, M42, M43, M44, M40)

399,00 €

BMW 1.8 16V M42 Athena Cooper ring cylinder head gasket 86.5x2mm 330075R

Athena Racing 330 series Cooper Ring cylinder head gasket set.
For specific high horsepower applications, engine performance can be significantly improved by using Athena Cooper Ring gaskets, that are supplied with INOX steel ring. This technology outperforms conventional fire ring solutions.
Cooper Rings are oversize (also fits for oversize bores).
Part number: 330075R
Gasket thickness: 2.00mm
Bore size: 86.50mm

Part number starting with 330
Athena advantages
Reinforced material	Asbestos free composite raw material OE approved
Stainless steel ring (AISI304)	Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required
Silicon beading	Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages

219,00 €
