Part number FCPRHH1374821.

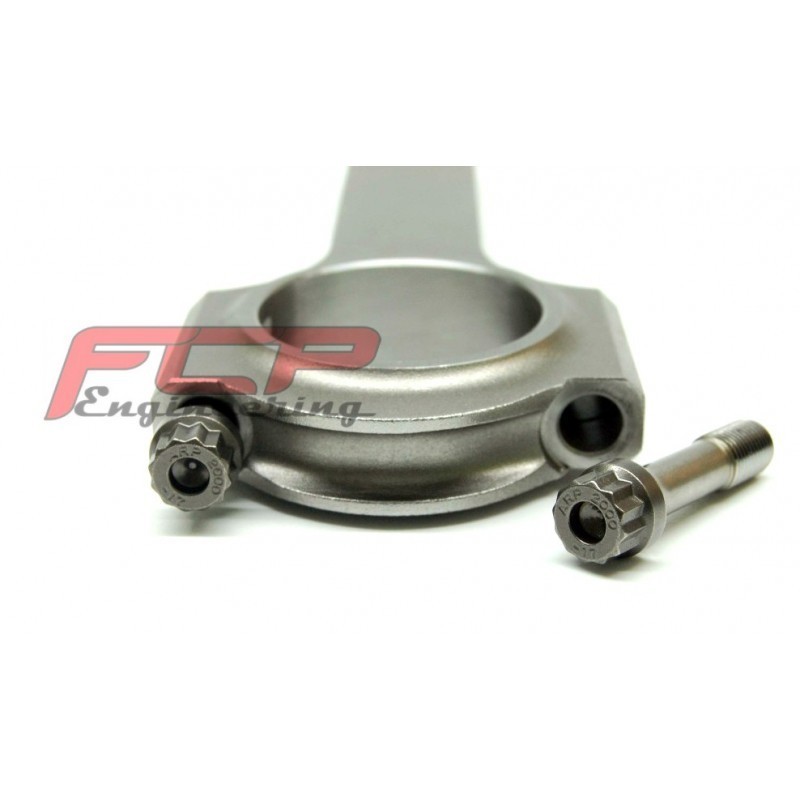

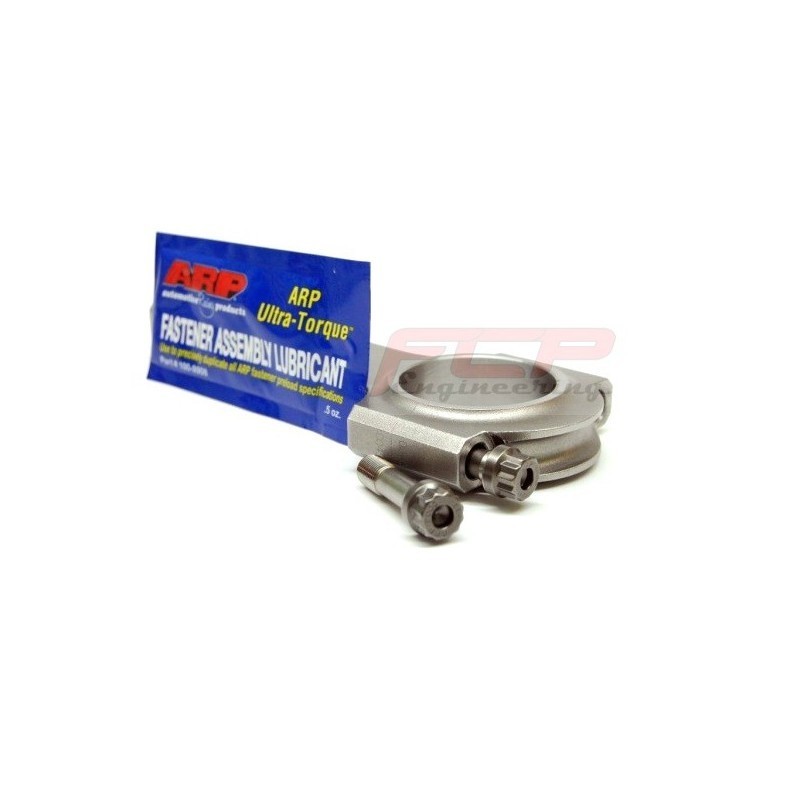

FCP Engineering H-beam steel connecting rods kit (4 pcs.) 137mm.
Honda - 1.8 2.0 16V Hybrid Vtec (B18A/B, B20, B20/B16)
| ENGINE BEARINGS | ||
 |
CON ROD BEARING SET |
|
| Part# | ||
| 4B1925H |
4B1925HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.976mm |
|
| Max Std Shaft Size |
1.7717in / 45mm |
|
| Min Std Tunnel Size |
1.8898in / 48mm |
|
| Max Std Tunnel Size |
1.8898in / 48mm |
|
| Max Wall at Crown |
0.0591in / 1.502mm |
0.0586in /1.489mm |
| Max Overall Length |
0.6890in / 17.5mm |
|
| Notes | ||
|
Diagram |
 |
|
|
|||||||
| Quantity | 4 | ||||||
| Crankshaft | 45.001 / 44.976 | ||||||
| Housing | 48.001 / 48.024 | ||||||
| Max Wall | 1.501 | ||||||
| Max Length | 17.501 |
| ENGINE BEARINGS | ||
|
CON ROD BEARING SET |
|
| Part# | ||
| 4B1925H |
4B1925HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material |
Tri-metal Hardened steel backs |
|
| Min Std Shaft Size |
1.7707in / 44.976mm |
|
| Max Std Shaft Size |
1.7717in / 45mm |
|
| Min Std Tunnel Size |
1.8898in / 48mm |
|
| Max Std Tunnel Size |
1.8898in / 48mm |
|
| Max Wall at Crown |
0.0591in / 1.502mm |
0.0586in /1.489mm |
| Max Overall Length |
0.6890in / 17.5mm |
|
| Notes | ||
|
Diagram |
|
|
