Part number 5M1959H-STD

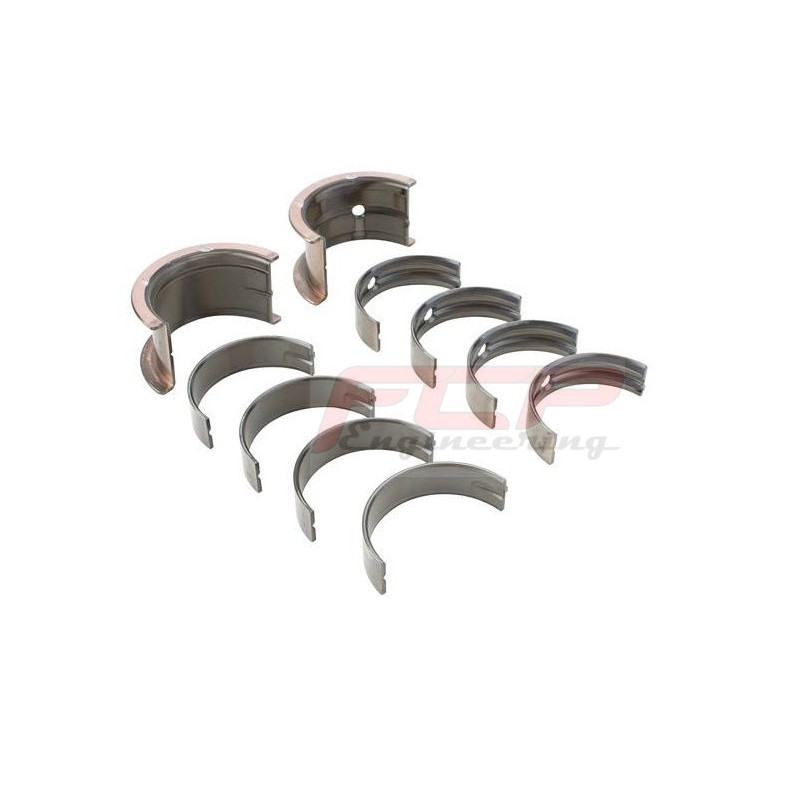

ACL Race Series main bearings
Honda - 1.6 1.7 1.8 2.0 2.4 (B16A, B17A1, B18A1, B18B1, B18B2, B18C1, B18C2, B18C5, B18C7, B20B, B20Z, K20A3, K20A2, K20Z1, K24A, K24Z1)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1959H |
5M1959HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Upper & Lower | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1646in / 54.98mm |
|
| Max Std Shaft Size |
2.1654in / 55mm |
|
| Min Std Tunnel Size |
2.3228in / 59mm |
|
| Max Std Tunnel Size |
2.3236in / 59.02mm |
|
| Max Wall at Crown |
0.0788in / 2.002mm |
0.0783in /1.989 |
| Max Overall Length |
0.7874in / 20mm |
|
| Notes | ||
|
Diagram |
 |
|
