Part number 5M1957H-STD

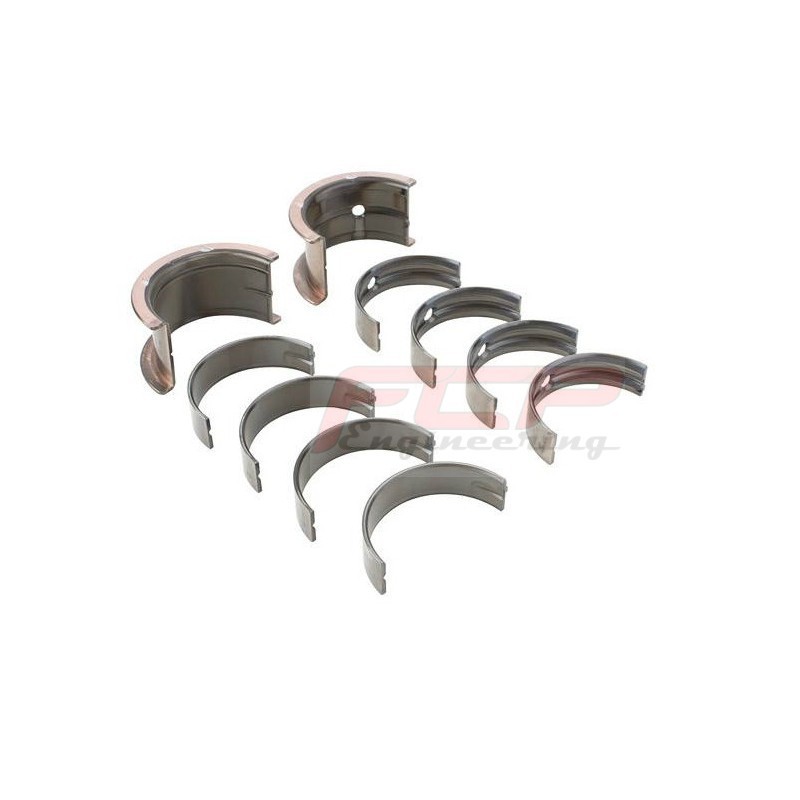

ACL Race Series main bearings
Honda - 1.6 1.7 1.8 2.0 2.2 2.3 (D16A, D16B, D16W, D16Y, D16Z, B18A, B20A SOHC only, B20A, B21A, B21A1 DOHC only, D17A, D17Z, H22A, H22Z, F23A, F23Z)
| ENGINE BEARINGS | ||
 |
MAIN BEARING SET |
|
| Part# | ||
| 5M1957H |
5M1957HX |
|
| Sizes | STD, 025, .25 | STD |
| Oil Clearance | Standard | + 0.001" Extra |
| Half Type | Identical Halves | |
| Material | Tri-Metal | |
| Min Std Shaft Size |
2.1646in / 54.980mm |
|
| Max Std Shaft Size |
2.1654in / 55.000mm |
|
| Min Std Tunnel Size |
2.3228in / 59.000mm |
|
| Max Std Tunnel Size |
2.3236in / 59.020mm |
|
| Max Wall at Crown |
0.0790in / 2.007mm |
0.0785in /1.994 mm |
| Max Overall Length |
0.7874in / 20.00mm |
|
| Notes | ||
|
Diagram |
 |
|
