Opel 2.0 16V Turbo C20LET C20XE FCP forged pistons CR 8.5 86.5mm

Part number FCPPOC865085

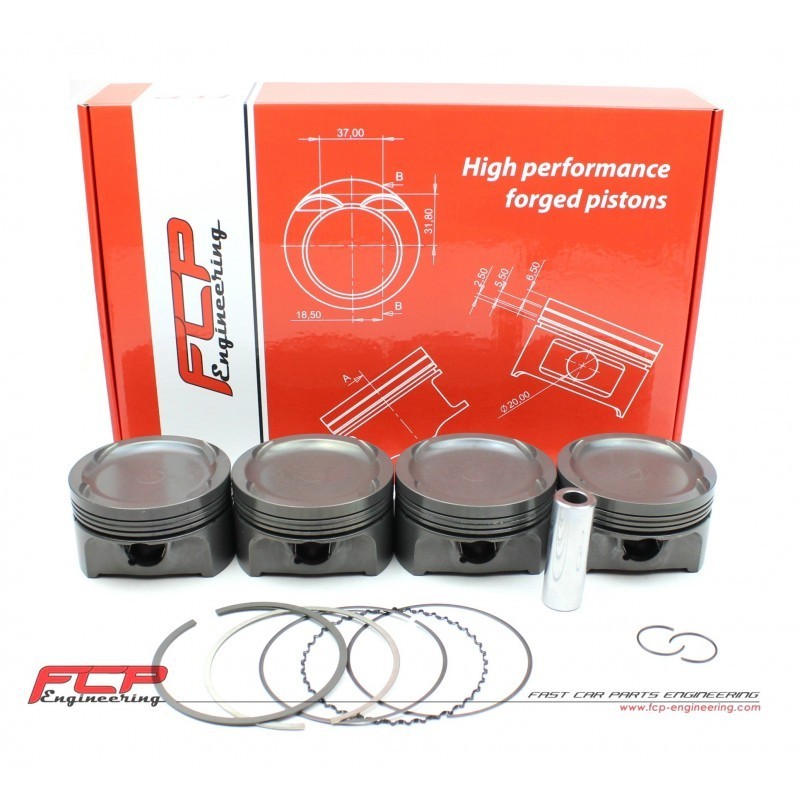

FCP Engineering forged piston kit (4 pcs.) CR 8.5:1 86.50mm
Opel / Vauxhall - 2.0 16V Turbo (C20LET, C20XE)

649,00 €

Доступность:0 шт.

Notify me when available

Информация

Part number: FCPPOC865085
Manufacturer: FCP Engineering
Forged high performance pistons for various applications in nearly all engine types for racing and street use.
Made of 4032-T6, piston skirt is molibden coated.
Each set of pistons also includes rings and HD series pins.
Bore size: 86.50mm
Compression ratio (CR): 8.5:1
Compression height: 30.50 mm
Pin diameter: 21mm
Stroke: 86.00mm
Opel / Vauxhall - 2.0 16V Turbo (C20LET, C20XE)

Connecting rod lengh must be 143.1mm or 148mm (2.2 block)

Вам также может понравиться

Opel C20LET/XE Z20LET/LEH/LER FCP X-beam steel connecting rods 143.1mm

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRXO14315221
Profile: X-beam
C to C: 143.10mm
Big end diameter: 52mm
Pin diameter: 21mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 1000HP (4 cylinder)
Advertised RPM rating: 9000RPM
Opel / Vauxhall - 2.0 16V (C20LET, C20XE, Z20LET, Z20LEH, Z20LER)

499,00 €

Opel 2.0 C20LET/XE Z20LET/LEH/LER FCP H-beam forged steel connecting rods...

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHO14315221
Profile: H-beam
C to C: 143.1mm
Big end diameter: 52mm
Pin diameter: 21mm
Quantity: 4 pcs., 8 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600HP (4 cylinder)
Advertised RPM rating: 9000RPM
Opel / Vauxhall - 2.0 16V (C20XE, C20LET, Z20LET, Z20LEH, Z20LER)

Achieved amazing results by our clients without any fail!
Opel Corsa C20LET 800+HP
Turbo: KKK31 boost 2.5bar
Weight: 740kg 1/4m. 9.6s!

http://www.youtube.com/watch?v=JQnoR6HjoI0

399,00 €

Opel 1.8 2.0 2.2 2.4 ACL Race connecting rod bearings 4B2322H-STD

NGINE BEARINGS
	CON ROD BEARING SET
	Part#
	4B2322H	4B2322HX
Sizes	STD, .025, .25, .50	STD
Oil Clearance	Standard	+ 0.001" Extra
Half Type	Upper & Lower
Material	Tri-metal Hardened steel backs
Min Std Shaft Size	1.9280in / 48.971mm
Max Std Shaft Size	1.9286 in / 48.987mm
Min Std Tunnel Size	2.0472in / 52.000mm
Max Std Tunnel Size	2.0477in / 52.012mm
Max Wall at Crown	0.0591in / 1.500mm	0.0596in / 1.513mm
Max Overall Length	0.760in / 19.30mm
Notes	Upper rod bearing has two oil holes to cover early and late engines.
Diagram (Top View)

Engines Opel 4 cylinder 1.8 2.0 2.2 2.4

75,00 €
