Part number FFRS4/27

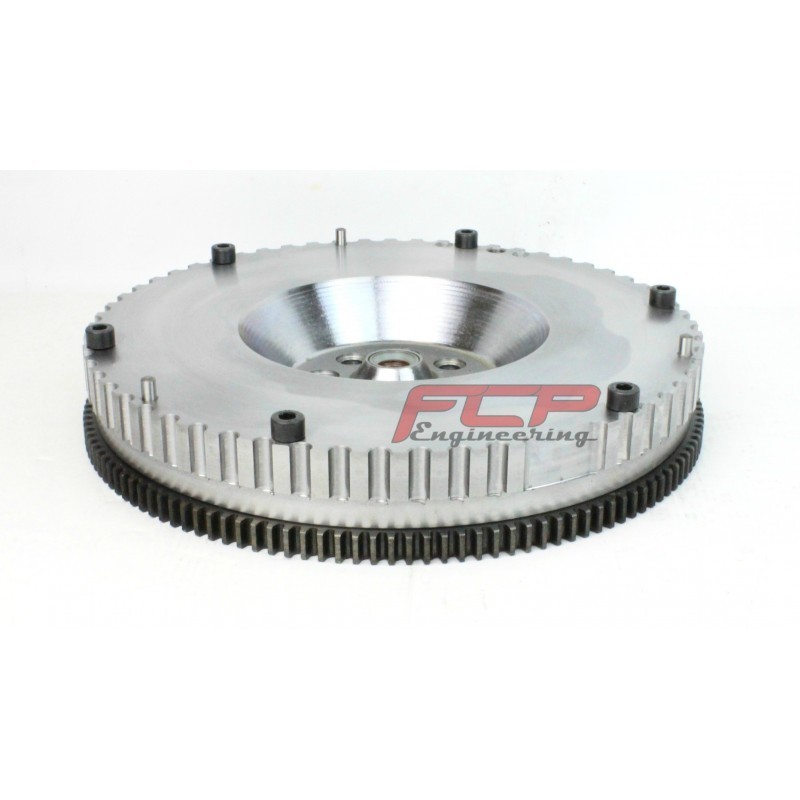

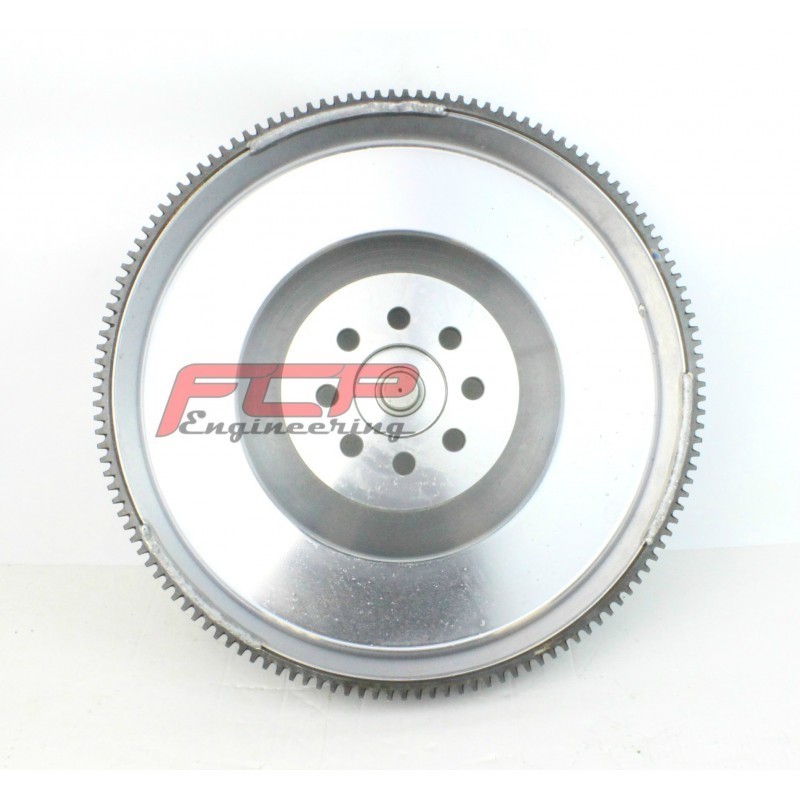

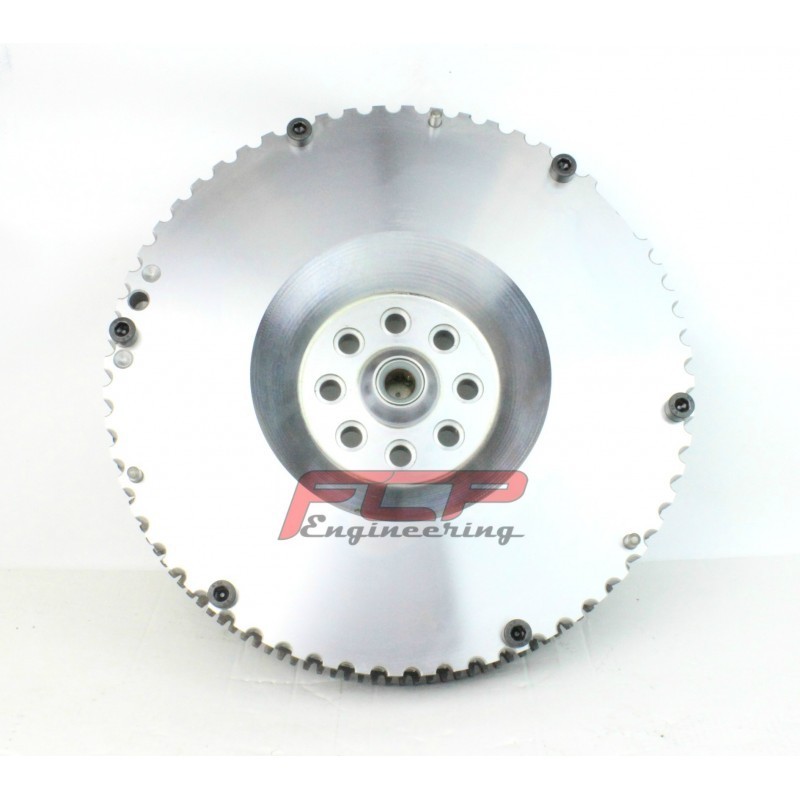

FCP Engineering steel flywheel with 60-2 counter
Audi S4, RS4, A6 - 2.7 30V Biturbo
Direct replacement Single-mass flywheel made from Alloy steel (16MnCr5) with 60-2 counter.
Used with 01E gearbox and Sachs Performance clutch kit.
Weight - 8.4kg.
Can be used with Sachs Performance clutch cover 883082999707
Clutch disc options:
Organic Sachs Performance (500+ Nm) - 881861999802
4pad ceramic Sachs Performance (up to 700 Nm) - 881861999809
6pad ceramic Sachs Performance (750+ Nm) - 881861000027
Product detailed specification
Manufacturer: FCP Engineering
Manufacturer: FCP Engineering
Model: FCPRHA15456821
Profile: H-beam
C to C: 154mm
Big end diameter: 56.80mm
Pin diameter: 21mm
Quantity: 6 pcs., 12 pcs. ARP2000 bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 600-800HP (6 cylinder)
Advertised RPM rating: 9000RPM
Fits for: Audi RS4 - 2.7 V6 Biturbo
|
Product detailed specification |
|
|
Bore size |
81.00mm |
|
Stroke |
92.80mm |
|
JE Pistons compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
10.0:1 |
|
Dome volume (CC) |
-3.30cm3 |
|
Compression height (CH) |
30.70mm |
|
Pin diameter |
21mm |
|
Features |
Accepts Turbo and Nitrous; Round skirt |
|
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
|
Product detailed specification |
|
|
Bore size |
82.00mm |
|
Stroke |
86.40mm |
|
JE Pistons compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
9.3:1 |
|
Dome volume (CC) |
-4.50cm3 |
|
Compression height (CH) |
30.70mm |
|
Pin diameter |
21mm |
|
Features |
Accepts Turbo and Nitrous; Round skirt |
|
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
|
Product detailed specification |
|
|
Bore size |
81.50mm |
|
Stroke |
86.40mm |
|
JE Pistons compression ratio (CR) |
9.0:1 |
|
OEM compression ratio (CR) |
9.3:1 |
|
Dome volume (CC) |
-3.90cm3 |
|
Compression height (CH) |
30.70mm |
|
Pin diameter |
21mm |
|
Features |
Accepts Turbo and Nitrous; Round skirt |
|
Fits for |
Audi S4, RS4, A6 - 2.7 30V |
Diameter: 240mm
Compared to volume production pressure plates, SACHS Performance pressure plates have a higher transmittable torque and are less sensitive to thrust loading. Depending on the requirements, they are used with different discs. Higher pedal forces might occur.
| AUDI : | ||
| A4 B5 (8D2) |  |
|
| S4 quattro (195 kW ; 09/1997 - 09/2001) | ||
| A4 B5 Avant (8D5) | |
|
| S4 quattro (195 kW ; 09/1997 - 09/2001) | ||
| A6 C5 (4B2) | |
|
| S6 quattro (250 kW ; 09/1999 - 01/2005) | ||
| A6 C5 Avant (4B5) | |
|
| S6 quattro (250 kW ; 09/1999 - 01/2005) | ||
| A8 D2 (4D2, 4D8) | |
|
| S 8 quattro (265 kW ; 06/1999 - 09/2002) | ||
| VOLKSWAGEN : | ||
| PASSAT B5.5 (3B3) | |
|
| 4.0 W8 4motion (202 kW ; 09/2001 - 09/2004) | ||
| PASSAT B5.5 Variant (3B6) | |
|
| 4.0 W8 4motion (202 kW ; 09/20 | ||
