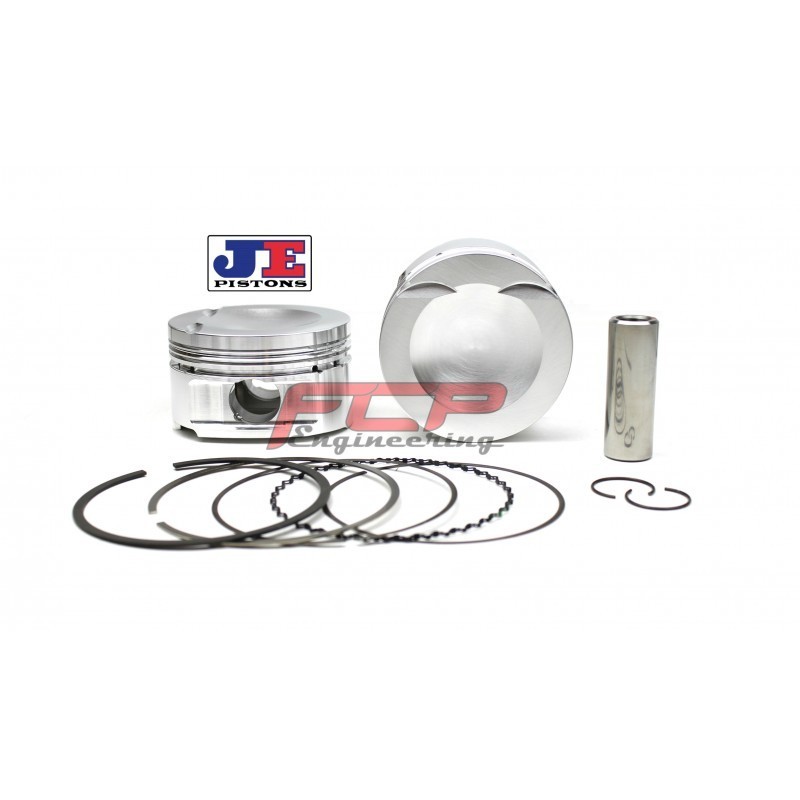

Audi TTRS 2.5 20V TFSI JE Pistons kit CR 9.5 82.50mm 337966

Part number 337966
JE Piston forged piston kit (5 pcs.) 82.50mm CR 9.5:1
Audi TTRS - 2.5 20V Turbo (CEPA, CEPB)

849,00 €

Доступность:2 шт.

Информация

Product detailed specification
Bore size	82.50mm
Stroke	92.80mm
JE Pistons compression ratio (CR)	9.5:1
OEM compression ratio (CR)	10.0:1
Dome volume (CC)	-7.50cm³
Compression height (CH)	29.60mm
Pin diameter	22mm
Features	Accepts Turbo and Nitrous; FSR Series skirt
Fits for	Audi TTRS 2.5 20V TFSI

Вам также может понравиться

Audi TTRS 2.5 20V TFSI valve spring and titanium retainer kit

Spring data:
Seat pressure - 70lbs @ 38.40mm (intake), 82lbs @ 37.00mm (exhaust)
Open (lift) pressure - 172lbs @ 10mm (intake), 180lbs @ 10mm (exhaust)
Max lift - 11.90mm (intake), 10.60mm (exhaust)
Spring coil bind - 24.90mm
Rate - 10.20lbs/mm
Spring outer diameter - 24.00mm
Spring inner diameter - 16.50mm

Set includes:
Single springs - 20 pcs.
Titanium retainers - 20 pcs.

499,00 €

Audi TTRS RS3 2.5 20V TFSI FCP steel connecting rods 144mm/22mm pin

Product detailed specification

Manufacturer: FCP Engineering
Model: FCPRHA14450622-5
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 22mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (5 cylinder)
Advertised RPM rating: 9000RPM
Audi TT RS, RS3 - 2.5 20V TFSI
These rods fit to aftermarket pistons, not with oem

489,00 €
