Part number 302229C

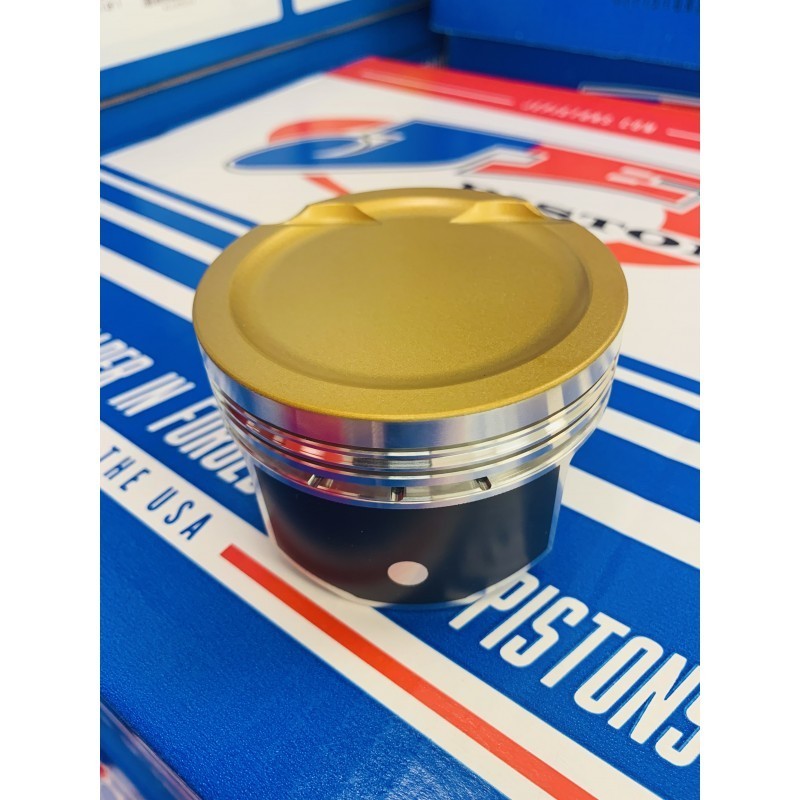

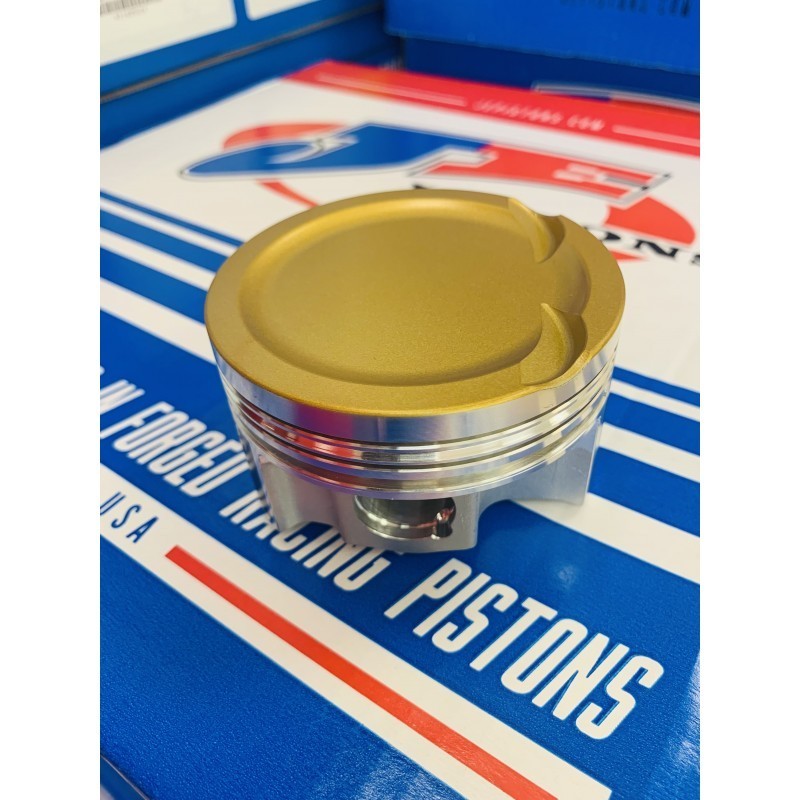

JE Piston forged piston kit (5 pcs.) 81.50mm CR 8.5:1 with Perfect skirt and Top Thermal Barrier coating
Audi Quattro UR, 200, S2, RS2, S4, S6 - 2.2 20V Turbo (3B, ABY, ADU, AAN)
1,2,3,5 | 4 | |||||||||||||
Pairs & PN |
|
|
||||||||||||
Quantity | 4 | 1 | ||||||||||||
Crankshaft | 53.978 / 53.957 | 53.978 / 53.957 | ||||||||||||
Housing | 58.999 / 59.017 | 58.999 / 59.017 | ||||||||||||
Max Wall | 2.499 | 2.499 | ||||||||||||
Max Length | 18.461 | 18.461 |
|
|||||||
Quantity | 4 | ||||||
Crankshaft | 47.777 / 47.757 | ||||||
Housing | 50.599 / 50.620 | ||||||
Max Wall | 1.402 | ||||||
Max Length | 18.971 |
Part number starting with 330 |
|
Athena advantages |
|
Reinforced material |
Asbestos free composite raw material OE approved |
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
Product detailed specification
Manufacturer: FCP Engineering
Model: FCPRHA14450620-5
Profile: H-beam
C to C: 144mm
Big end diameter: 50.6mm
Pin diameter: 20mm
Quantity: 5 pcs., 10 pcs. ARP2000 3/8" bolts
Made of: forged steel 4340 EN24er
Advertised horsepower rating: 700HP (5 cylinder)
Advertised RPM rating: 9000RPM
Audi 90, Coupe - 2.3 20V (7A)
200, S2, RS2, S4, S6 - 2.2 20V Turbo (3B, ABY, ADU, AAN)
ENGINE BEARINGS | ||
CON ROD BEARING SET |
||
Part# | ||
4B1606H |
4B1606HX |
|
Sizes | STD, .025, .25, .50 | STD |
Oil Clearance | Standard | + 0.001" Extra |
Half Type | Identical Halves | |
Material |
Tri-metal Hardened steel backs |
|
Min Std Shaft Size |
1.8802" /47.758mm |
|
Max Std Shaft Size |
1.8810" /47.778mm |
|
Min Std Tunnel Size |
1.9921" /50.600mm |
|
Max Std Tunnel Size |
1.9929" /50.619mm |
|
Max Wall at Crown |
0.0553" / 1.405mm |
0.0548" /1.392mm |
Max Overall Length |
0.748" / 19.00mm |
|
Notes | Bearing has 1.65mm oil hole at crown | |
Diagram |
|
Engines Audi 2.2 2.3 20V (incl. Turbo) S2, RS2, 200, S4, S6. 3B, 7A, AAN, ADU, ABY.
