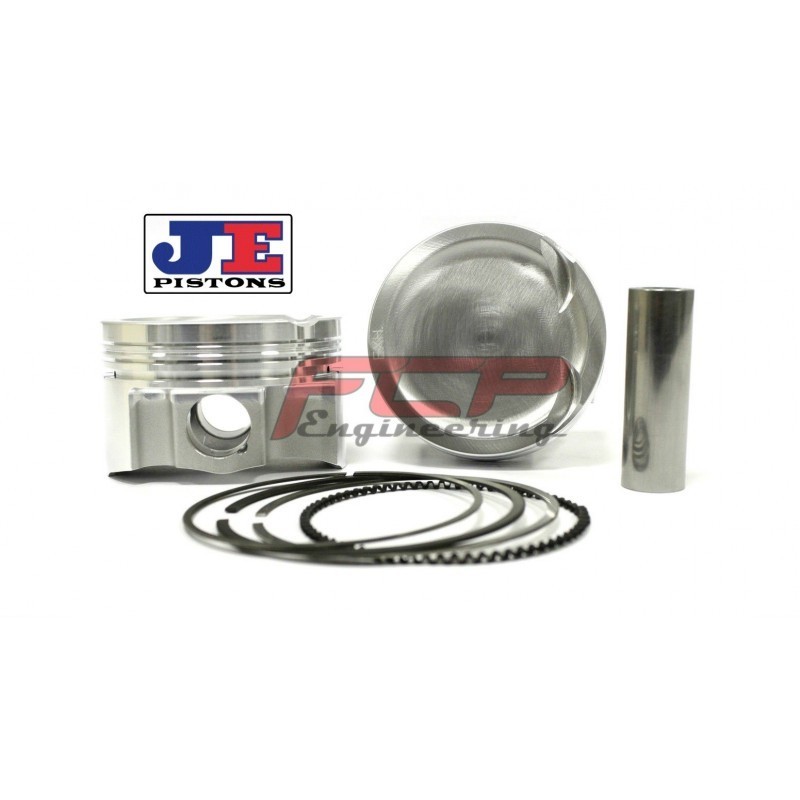

Audi S2 RS2 S4 S6 2.2T 20V JE Pistons kit CR 8.5 81.50mm 302229

Part number 302229
JE Piston forged piston kit (5 pcs.) 81.50mm CR 8.5:1
Audi Quattro UR, 200, S2, RS2, S4, S6 - 2.2 20V Turbo (3B, ABY, ADU, AAN)

849,00 €

Доступность:1 шт.

Информация

Product detailed specification
Bore size	81.50mm
Stroke	86.40mm
JE Pistons compression ratio (CR)	8.5:1
OEM compression ratio (CR)	9.3:1
Dome volume (CC)	-8.30cm³
Compression height (CH)	32.80mm
Pin diameter	20mm
Features	Accepts Turbo and Nitrous; FSR Series
Fits for	Audi RS2
