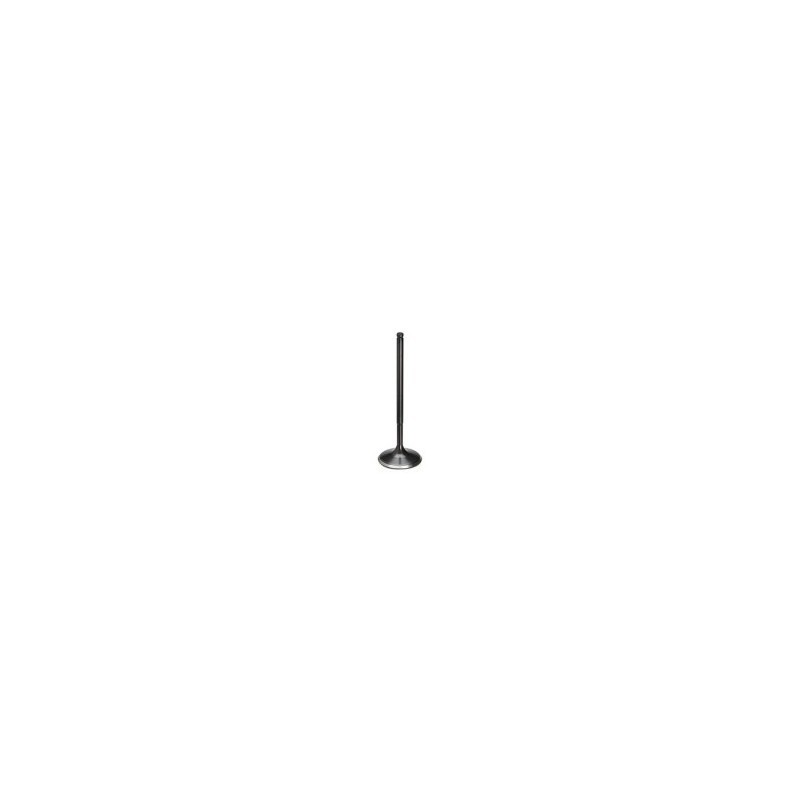

Part number VWIVN-1001S
Supertech black nitrided stainless steel (high flow version) intake valve
Audi TT RS, Q3 RS - 2.5 20V TFSI
Must be used single groove keepers KPR-6S-7
Product detailed specification |
|
Model number |
VWIVN-1001S |
Head diameter |
33.00mm |
Stem diameter |
5.98mm |
Length |
103.90mm |
Material |
Black nitrided stainless steel |
Fits for |
Audi TT RS, Q3 RS - 2.5 20V |
Part number starting with 330 |
|
Athena advantages |
|
Reinforced material |
Asbestos free composite raw material OE approved |
Stainless steel ring (AISI304) |
Separate stainless steel rings assure maximum sealing around cylinder bore also on NOS and/or turbo charged engine where boost is over 2 bars. No head and block machining required |
Silicon beading |
Silicon-based beading is applied on critical areas to improve sealing around all cooling water and oil passages |
Product detailed specification |
|
Model number |
VWEVI-1002S |
Head diameter |
28.00mm |
Stem diameter |
5.96mm |
Length |
101.80mm |
Material |
Inconel |
Fits for |
Audi / VW - 2.0 16V TSI TFSI, 2.5 20V |
Product detailed specification |
|
Model number |
VWEVI-1004S |
Head diameter |
29.00mm |
Stem diameter |
5.96mm |
Length |
101.80mm |
Material |
Inconel |
Fits for |
Audi / VW - 2.0 16V TSI TFSI, 2.5 20V |
